Fig. 10

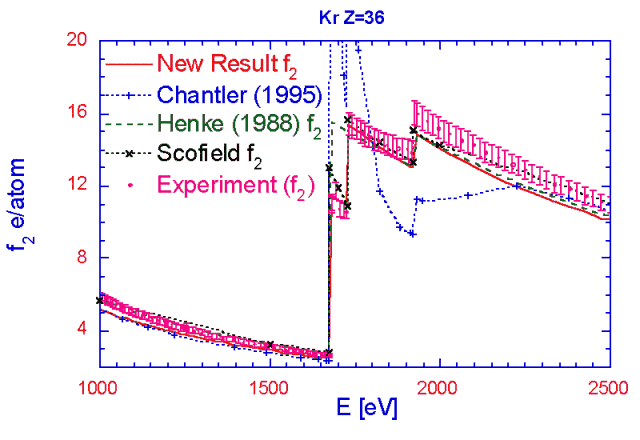

Figure 10. The best experimental data in the range of Z = 30 - 36, for Kr Z = 36 (Wuilleumier [57]), supports this work in structure and detail. Im (f) = f2. The experimental values include contributions from scattering. [µ/rho] (in cm2/g) = f2 (e/atom) × 5.021 52 × 105.
