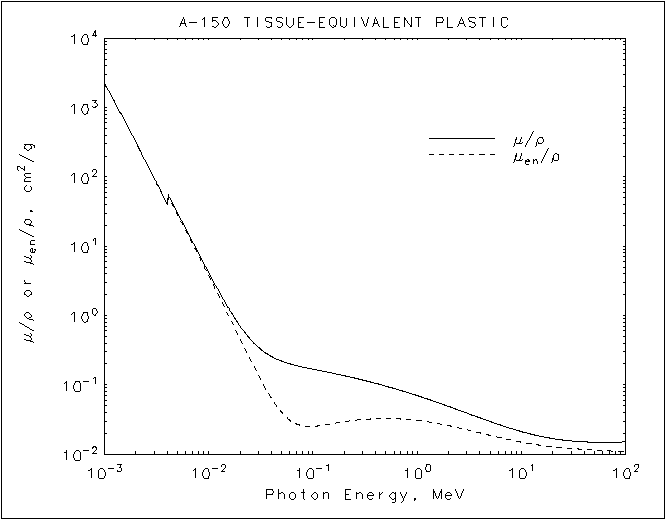

A-150 Tissue-Equivalent Plastic
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
2.259E+03 |
2.256E+03 |
| 1.50000E-03 |
7.282E+02 |
7.267E+02 |
| 2.00000E-03 |
3.183E+02 |
3.172E+02 |
| 3.00000E-03 |
9.652E+01 |
9.576E+01 |
| 4.00000E-03 |
4.081E+01 |
4.021E+01 |
| 4.03810E-03 |
3.966E+01 |
3.907E+01 |
| 20 K |
4.03810E-03 |
5.629E+01 |
5.326E+01 |
| |
5.00000E-03 |
3.069E+01 |
2.901E+01 |
| 6.00000E-03 |
1.813E+01 |
1.708E+01 |
| 8.00000E-03 |
7.914E+00 |
7.337E+00 |
| 1.00000E-02 |
4.186E+00 |
3.771E+00 |
| 1.50000E-02 |
1.394E+00 |
1.106E+00 |
| 2.00000E-02 |
7.068E-01 |
4.605E-01 |
| 3.00000E-02 |
3.481E-01 |
1.378E-01 |
| 4.00000E-02 |
2.562E-01 |
6.411E-02 |
| 5.00000E-02 |
2.198E-01 |
4.018E-02 |
| 6.00000E-02 |
2.008E-01 |
3.095E-02 |
| 8.00000E-02 |
1.803E-01 |
2.561E-02 |
| 1.00000E-01 |
1.680E-01 |
2.520E-02 |
| 1.50000E-01 |
1.485E-01 |
2.736E-02 |
| 2.00000E-01 |
1.353E-01 |
2.937E-02 |
| 3.00000E-01 |
1.173E-01 |
3.159E-02 |
| 4.00000E-01 |
1.049E-01 |
3.245E-02 |
| 5.00000E-01 |
9.579E-02 |
3.265E-02 |
| 6.00000E-01 |
8.857E-02 |
3.249E-02 |
| 8.00000E-01 |
7.777E-02 |
3.172E-02 |
| 1.00000E+00 |
6.992E-02 |
3.070E-02 |
| 1.25000E+00 |
6.253E-02 |
2.934E-02 |
| 1.50000E+00 |
5.691E-02 |
2.805E-02 |
| 2.00000E+00 |
4.880E-02 |
2.578E-02 |
| 3.00000E+00 |
3.907E-02 |
2.247E-02 |
| 4.00000E+00 |
3.335E-02 |
2.025E-02 |
| 5.00000E+00 |
2.958E-02 |
1.867E-02 |
| 6.00000E+00 |
2.690E-02 |
1.751E-02 |
| 8.00000E+00 |
2.338E-02 |
1.592E-02 |
| 1.00000E+01 |
2.117E-02 |
1.489E-02 |
| 1.50000E+01 |
1.819E-02 |
1.346E-02 |
| 2.00000E+01 |
1.675E-02 |
1.275E-02 |
|
|
A-150 Tissue-Equivalent Plastic
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 2.259E+03 2.256E+03
1.50000E-03 7.282E+02 7.267E+02
2.00000E-03 3.183E+02 3.172E+02
3.00000E-03 9.652E+01 9.576E+01
4.00000E-03 4.081E+01 4.021E+01
4.03810E-03 3.966E+01 3.907E+01
20 K 4.03810E-03 5.629E+01 5.326E+01
5.00000E-03 3.069E+01 2.901E+01
6.00000E-03 1.813E+01 1.708E+01
8.00000E-03 7.914E+00 7.337E+00
1.00000E-02 4.186E+00 3.771E+00
1.50000E-02 1.394E+00 1.106E+00
2.00000E-02 7.068E-01 4.605E-01
3.00000E-02 3.481E-01 1.378E-01
4.00000E-02 2.562E-01 6.411E-02
5.00000E-02 2.198E-01 4.018E-02
6.00000E-02 2.008E-01 3.095E-02
8.00000E-02 1.803E-01 2.561E-02
1.00000E-01 1.680E-01 2.520E-02
1.50000E-01 1.485E-01 2.736E-02
2.00000E-01 1.353E-01 2.937E-02
3.00000E-01 1.173E-01 3.159E-02
4.00000E-01 1.049E-01 3.245E-02
5.00000E-01 9.579E-02 3.265E-02
6.00000E-01 8.857E-02 3.249E-02
8.00000E-01 7.777E-02 3.172E-02
1.00000E+00 6.992E-02 3.070E-02
1.25000E+00 6.253E-02 2.934E-02
1.50000E+00 5.691E-02 2.805E-02
2.00000E+00 4.880E-02 2.578E-02
3.00000E+00 3.907E-02 2.247E-02
4.00000E+00 3.335E-02 2.025E-02
5.00000E+00 2.958E-02 1.867E-02
6.00000E+00 2.690E-02 1.751E-02
8.00000E+00 2.338E-02 1.592E-02
1.00000E+01 2.117E-02 1.489E-02
1.50000E+01 1.819E-02 1.346E-02
2.00000E+01 1.675E-02 1.275E-02
|
