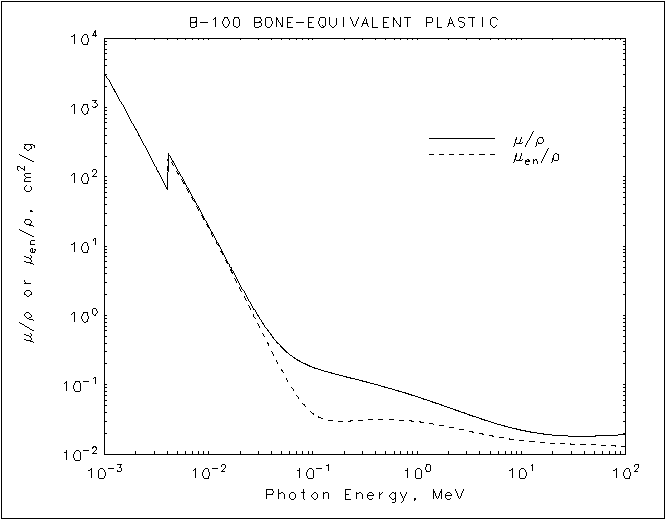

B-100 Bone-Equivalent Plastic
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.211E+03 |
3.203E+03 |
| 1.50000E-03 |
1.083E+03 |
1.080E+03 |
| 2.00000E-03 |
4.878E+02 |
4.859E+02 |
| 3.00000E-03 |
1.542E+02 |
1.530E+02 |
| 4.00000E-03 |
6.717E+01 |
6.623E+01 |
| 4.03810E-03 |
6.535E+01 |
6.442E+01 |
| 20 K |
4.03810E-03 |
2.251E+02 |
2.008E+02 |
| |
5.00000E-03 |
1.298E+02 |
1.178E+02 |
| 6.00000E-03 |
7.942E+01 |
7.294E+01 |
| 8.00000E-03 |
3.619E+01 |
3.363E+01 |
| 1.00000E-02 |
1.944E+01 |
1.812E+01 |
| 1.50000E-02 |
6.222E+00 |
5.694E+00 |
| 2.00000E-02 |
2.798E+00 |
2.452E+00 |
| 3.00000E-02 |
9.752E-01 |
7.337E-01 |
| 4.00000E-02 |
5.179E-01 |
3.124E-01 |
| 5.00000E-02 |
3.506E-01 |
1.648E-01 |
| 6.00000E-02 |
2.738E-01 |
1.014E-01 |
| 8.00000E-02 |
2.076E-01 |
5.372E-02 |
| 1.00000E-01 |
1.793E-01 |
3.864E-02 |
| 1.50000E-01 |
1.482E-01 |
3.031E-02 |
| 2.00000E-01 |
1.325E-01 |
2.984E-02 |
| 3.00000E-01 |
1.135E-01 |
3.081E-02 |
| 4.00000E-01 |
1.012E-01 |
3.135E-02 |
| 5.00000E-01 |
9.227E-02 |
3.145E-02 |
| 6.00000E-01 |
8.525E-02 |
3.126E-02 |
| 8.00000E-01 |
7.481E-02 |
3.047E-02 |
| 1.00000E+00 |
6.723E-02 |
2.947E-02 |
| 1.25000E+00 |
6.012E-02 |
2.815E-02 |
| 1.50000E+00 |
5.473E-02 |
2.691E-02 |
| 2.00000E+00 |
4.705E-02 |
2.478E-02 |
| 3.00000E+00 |
3.799E-02 |
2.180E-02 |
| 4.00000E+00 |
3.277E-02 |
1.989E-02 |
| 5.00000E+00 |
2.938E-02 |
1.858E-02 |
| 6.00000E+00 |
2.703E-02 |
1.765E-02 |
| 8.00000E+00 |
2.400E-02 |
1.644E-02 |
| 1.00000E+01 |
2.218E-02 |
1.571E-02 |
| 1.50000E+01 |
1.987E-02 |
1.478E-02 |
| 2.00000E+01 |
1.888E-02 |
1.438E-02 |
|
|
B-100 Bone-Equivalent Plastic
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.211E+03 3.203E+03
1.50000E-03 1.083E+03 1.080E+03
2.00000E-03 4.878E+02 4.859E+02
3.00000E-03 1.542E+02 1.530E+02
4.00000E-03 6.717E+01 6.623E+01
4.03810E-03 6.535E+01 6.442E+01
20 K 4.03810E-03 2.251E+02 2.008E+02
5.00000E-03 1.298E+02 1.178E+02
6.00000E-03 7.942E+01 7.294E+01
8.00000E-03 3.619E+01 3.363E+01
1.00000E-02 1.944E+01 1.812E+01
1.50000E-02 6.222E+00 5.694E+00
2.00000E-02 2.798E+00 2.452E+00
3.00000E-02 9.752E-01 7.337E-01
4.00000E-02 5.179E-01 3.124E-01
5.00000E-02 3.506E-01 1.648E-01
6.00000E-02 2.738E-01 1.014E-01
8.00000E-02 2.076E-01 5.372E-02
1.00000E-01 1.793E-01 3.864E-02
1.50000E-01 1.482E-01 3.031E-02
2.00000E-01 1.325E-01 2.984E-02
3.00000E-01 1.135E-01 3.081E-02
4.00000E-01 1.012E-01 3.135E-02
5.00000E-01 9.227E-02 3.145E-02
6.00000E-01 8.525E-02 3.126E-02
8.00000E-01 7.481E-02 3.047E-02
1.00000E+00 6.723E-02 2.947E-02
1.25000E+00 6.012E-02 2.815E-02
1.50000E+00 5.473E-02 2.691E-02
2.00000E+00 4.705E-02 2.478E-02
3.00000E+00 3.799E-02 2.180E-02
4.00000E+00 3.277E-02 1.989E-02
5.00000E+00 2.938E-02 1.858E-02
6.00000E+00 2.703E-02 1.765E-02
8.00000E+00 2.400E-02 1.644E-02
1.00000E+01 2.218E-02 1.571E-02
1.50000E+01 1.987E-02 1.478E-02
2.00000E+01 1.888E-02 1.438E-02
|
