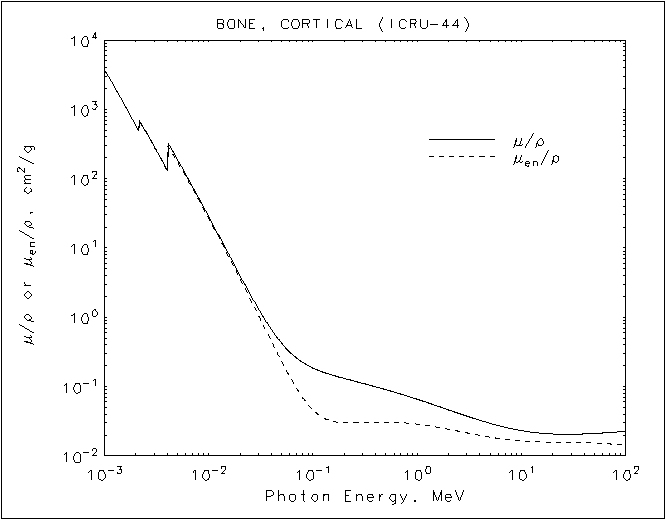

Bone, Cortical (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.781E+03 |
3.772E+03 |
| 1.03542E-03 |
3.452E+03 |
3.444E+03 |
| 1.07210E-03 |
3.150E+03 |
3.143E+03 |
| 11 K |
1.07210E-03 |
3.156E+03 |
3.149E+03 |
| |
1.18283E-03 |
2.434E+03 |
2.429E+03 |
| 1.30500E-03 |
1.873E+03 |
1.869E+03 |
| 12 K |
1.30500E-03 |
1.883E+03 |
1.878E+03 |
| |
1.50000E-03 |
1.295E+03 |
1.291E+03 |
| 2.00000E-03 |
5.869E+02 |
5.846E+02 |
| 2.14550E-03 |
4.824E+02 |
4.803E+02 |
| 15 K |
2.14550E-03 |
7.114E+02 |
6.961E+02 |
| |
2.30297E-03 |
5.916E+02 |
5.789E+02 |
| 2.47200E-03 |
4.907E+02 |
4.805E+02 |
| 16 K |
2.47200E-03 |
4.962E+02 |
4.857E+02 |
| |
3.00000E-03 |
2.958E+02 |
2.897E+02 |
| 4.00000E-03 |
1.331E+02 |
1.303E+02 |
| 4.03810E-03 |
1.296E+02 |
1.269E+02 |
| 20 K |
4.03810E-03 |
3.332E+02 |
3.006E+02 |
| |
5.00000E-03 |
1.917E+02 |
1.757E+02 |
| 6.00000E-03 |
1.171E+02 |
1.085E+02 |
| 8.00000E-03 |
5.323E+01 |
4.987E+01 |
| 1.00000E-02 |
2.851E+01 |
2.680E+01 |
| 1.50000E-02 |
9.032E+00 |
8.388E+00 |
| 2.00000E-02 |
4.001E+00 |
3.601E+00 |
| 3.00000E-02 |
1.331E+00 |
1.070E+00 |
| 4.00000E-02 |
6.655E-01 |
4.507E-01 |
| 5.00000E-02 |
4.242E-01 |
2.336E-01 |
| 6.00000E-02 |
3.148E-01 |
1.400E-01 |
| 8.00000E-02 |
2.229E-01 |
6.896E-02 |
| 1.00000E-01 |
1.855E-01 |
4.585E-02 |
| 1.50000E-01 |
1.480E-01 |
3.183E-02 |
| 2.00000E-01 |
1.309E-01 |
3.003E-02 |
| 3.00000E-01 |
1.113E-01 |
3.032E-02 |
| 4.00000E-01 |
9.908E-02 |
3.069E-02 |
| 5.00000E-01 |
9.022E-02 |
3.073E-02 |
| 6.00000E-01 |
8.332E-02 |
3.052E-02 |
| 8.00000E-01 |
7.308E-02 |
2.973E-02 |
| 1.00000E+00 |
6.566E-02 |
2.875E-02 |
| 1.25000E+00 |
5.871E-02 |
2.745E-02 |
| 1.50000E+00 |
5.346E-02 |
2.623E-02 |
| 2.00000E+00 |
4.607E-02 |
2.421E-02 |
| 3.00000E+00 |
3.745E-02 |
2.145E-02 |
| 4.00000E+00 |
3.257E-02 |
1.975E-02 |
| 5.00000E+00 |
2.946E-02 |
1.864E-02 |
| 6.00000E+00 |
2.734E-02 |
1.788E-02 |
| 8.00000E+00 |
2.467E-02 |
1.695E-02 |
| 1.00000E+01 |
2.314E-02 |
1.644E-02 |
| 1.50000E+01 |
2.132E-02 |
1.587E-02 |
| 2.00000E+01 |
2.068E-02 |
1.568E-02 |
|
|
Bone, Cortical (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.781E+03 3.772E+03
1.03542E-03 3.452E+03 3.444E+03
1.07210E-03 3.150E+03 3.143E+03
11 K 1.07210E-03 3.156E+03 3.149E+03
1.18283E-03 2.434E+03 2.429E+03
1.30500E-03 1.873E+03 1.869E+03
12 K 1.30500E-03 1.883E+03 1.878E+03
1.50000E-03 1.295E+03 1.291E+03
2.00000E-03 5.869E+02 5.846E+02
2.14550E-03 4.824E+02 4.803E+02
15 K 2.14550E-03 7.114E+02 6.961E+02
2.30297E-03 5.916E+02 5.789E+02
2.47200E-03 4.907E+02 4.805E+02
16 K 2.47200E-03 4.962E+02 4.857E+02
3.00000E-03 2.958E+02 2.897E+02
4.00000E-03 1.331E+02 1.303E+02
4.03810E-03 1.296E+02 1.269E+02
20 K 4.03810E-03 3.332E+02 3.006E+02
5.00000E-03 1.917E+02 1.757E+02
6.00000E-03 1.171E+02 1.085E+02
8.00000E-03 5.323E+01 4.987E+01
1.00000E-02 2.851E+01 2.680E+01
1.50000E-02 9.032E+00 8.388E+00
2.00000E-02 4.001E+00 3.601E+00
3.00000E-02 1.331E+00 1.070E+00
4.00000E-02 6.655E-01 4.507E-01
5.00000E-02 4.242E-01 2.336E-01
6.00000E-02 3.148E-01 1.400E-01
8.00000E-02 2.229E-01 6.896E-02
1.00000E-01 1.855E-01 4.585E-02
1.50000E-01 1.480E-01 3.183E-02
2.00000E-01 1.309E-01 3.003E-02
3.00000E-01 1.113E-01 3.032E-02
4.00000E-01 9.908E-02 3.069E-02
5.00000E-01 9.022E-02 3.073E-02
6.00000E-01 8.332E-02 3.052E-02
8.00000E-01 7.308E-02 2.973E-02
1.00000E+00 6.566E-02 2.875E-02
1.25000E+00 5.871E-02 2.745E-02
1.50000E+00 5.346E-02 2.623E-02
2.00000E+00 4.607E-02 2.421E-02
3.00000E+00 3.745E-02 2.145E-02
4.00000E+00 3.257E-02 1.975E-02
5.00000E+00 2.946E-02 1.864E-02
6.00000E+00 2.734E-02 1.788E-02
8.00000E+00 2.467E-02 1.695E-02
1.00000E+01 2.314E-02 1.644E-02
1.50000E+01 2.132E-02 1.587E-02
2.00000E+01 2.068E-02 1.568E-02
|
