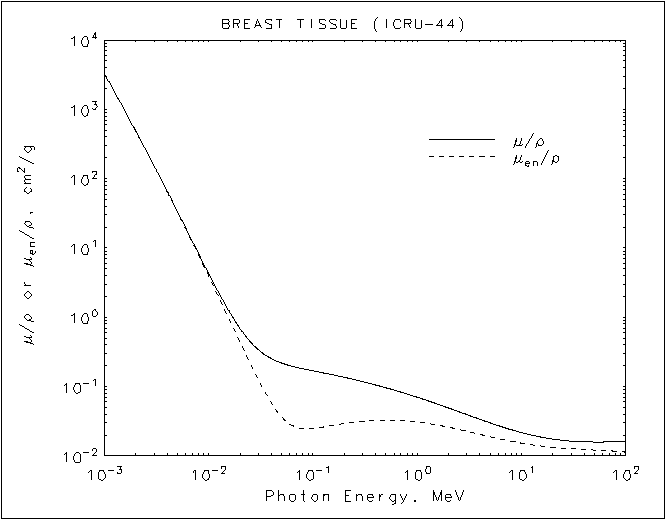

Breast Tissue (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.263E+03 |
3.255E+03 |
| 1.03542E-03 |
2.975E+03 |
2.967E+03 |
| 1.07210E-03 |
2.710E+03 |
2.703E+03 |
| 11 K |
1.07210E-03 |
2.716E+03 |
2.709E+03 |
| |
1.50000E-03 |
1.088E+03 |
1.085E+03 |
| 2.00000E-03 |
4.842E+02 |
4.825E+02 |
| 2.14550E-03 |
3.961E+02 |
3.946E+02 |
| 15 K |
2.14550E-03 |
3.983E+02 |
3.967E+02 |
| |
2.30297E-03 |
3.250E+02 |
3.235E+02 |
| 2.47200E-03 |
2.649E+02 |
2.636E+02 |
| 16 K |
2.47200E-03 |
2.686E+02 |
2.670E+02 |
| |
2.64140E-03 |
2.221E+02 |
2.204E+02 |
| 2.82240E-03 |
1.831E+02 |
1.818E+02 |
| 17 K |
2.82240E-03 |
1.845E+02 |
1.831E+02 |
| |
3.00000E-03 |
1.546E+02 |
1.533E+02 |
| 4.00000E-03 |
6.625E+01 |
6.540E+01 |
| 5.00000E-03 |
3.407E+01 |
3.341E+01 |
| 6.00000E-03 |
1.972E+01 |
1.918E+01 |
| 8.00000E-03 |
8.320E+00 |
7.899E+00 |
| 1.00000E-02 |
4.295E+00 |
3.937E+00 |
| 1.50000E-02 |
1.378E+00 |
1.094E+00 |
| 2.00000E-02 |
6.889E-01 |
4.394E-01 |
| 3.00000E-02 |
3.403E-01 |
1.260E-01 |
| 4.00000E-02 |
2.530E-01 |
5.792E-02 |
| 5.00000E-02 |
2.186E-01 |
3.666E-02 |
| 6.00000E-02 |
2.006E-01 |
2.881E-02 |
| 8.00000E-02 |
1.808E-01 |
2.470E-02 |
| 1.00000E-01 |
1.688E-01 |
2.478E-02 |
| 1.50000E-01 |
1.493E-01 |
2.734E-02 |
| 2.00000E-01 |
1.361E-01 |
2.945E-02 |
| 3.00000E-01 |
1.179E-01 |
3.173E-02 |
| 4.00000E-01 |
1.055E-01 |
3.260E-02 |
| 5.00000E-01 |
9.631E-02 |
3.281E-02 |
| 6.00000E-01 |
8.904E-02 |
3.266E-02 |
| 8.00000E-01 |
7.820E-02 |
3.188E-02 |
| 1.00000E+00 |
7.031E-02 |
3.086E-02 |
| 1.25000E+00 |
6.287E-02 |
2.949E-02 |
| 1.50000E+00 |
5.721E-02 |
2.818E-02 |
| 2.00000E+00 |
4.910E-02 |
2.592E-02 |
| 3.00000E+00 |
3.937E-02 |
2.264E-02 |
| 4.00000E+00 |
3.369E-02 |
2.045E-02 |
| 5.00000E+00 |
2.995E-02 |
1.891E-02 |
| 6.00000E+00 |
2.731E-02 |
1.779E-02 |
| 8.00000E+00 |
2.384E-02 |
1.626E-02 |
| 1.00000E+01 |
2.169E-02 |
1.529E-02 |
| 1.50000E+01 |
1.882E-02 |
1.395E-02 |
| 2.00000E+01 |
1.746E-02 |
1.330E-02 |
|
|
Breast Tissue (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.263E+03 3.255E+03
1.03542E-03 2.975E+03 2.967E+03
1.07210E-03 2.710E+03 2.703E+03
11 K 1.07210E-03 2.716E+03 2.709E+03
1.50000E-03 1.088E+03 1.085E+03
2.00000E-03 4.842E+02 4.825E+02
2.14550E-03 3.961E+02 3.946E+02
15 K 2.14550E-03 3.983E+02 3.967E+02
2.30297E-03 3.250E+02 3.235E+02
2.47200E-03 2.649E+02 2.636E+02
16 K 2.47200E-03 2.686E+02 2.670E+02
2.64140E-03 2.221E+02 2.204E+02
2.82240E-03 1.831E+02 1.818E+02
17 K 2.82240E-03 1.845E+02 1.831E+02
3.00000E-03 1.546E+02 1.533E+02
4.00000E-03 6.625E+01 6.540E+01
5.00000E-03 3.407E+01 3.341E+01
6.00000E-03 1.972E+01 1.918E+01
8.00000E-03 8.320E+00 7.899E+00
1.00000E-02 4.295E+00 3.937E+00
1.50000E-02 1.378E+00 1.094E+00
2.00000E-02 6.889E-01 4.394E-01
3.00000E-02 3.403E-01 1.260E-01
4.00000E-02 2.530E-01 5.792E-02
5.00000E-02 2.186E-01 3.666E-02
6.00000E-02 2.006E-01 2.881E-02
8.00000E-02 1.808E-01 2.470E-02
1.00000E-01 1.688E-01 2.478E-02
1.50000E-01 1.493E-01 2.734E-02
2.00000E-01 1.361E-01 2.945E-02
3.00000E-01 1.179E-01 3.173E-02
4.00000E-01 1.055E-01 3.260E-02
5.00000E-01 9.631E-02 3.281E-02
6.00000E-01 8.904E-02 3.266E-02
8.00000E-01 7.820E-02 3.188E-02
1.00000E+00 7.031E-02 3.086E-02
1.25000E+00 6.287E-02 2.949E-02
1.50000E+00 5.721E-02 2.818E-02
2.00000E+00 4.910E-02 2.592E-02
3.00000E+00 3.937E-02 2.264E-02
4.00000E+00 3.369E-02 2.045E-02
5.00000E+00 2.995E-02 1.891E-02
6.00000E+00 2.731E-02 1.779E-02
8.00000E+00 2.384E-02 1.626E-02
1.00000E+01 2.169E-02 1.529E-02
1.50000E+01 1.882E-02 1.395E-02
2.00000E+01 1.746E-02 1.330E-02
|
