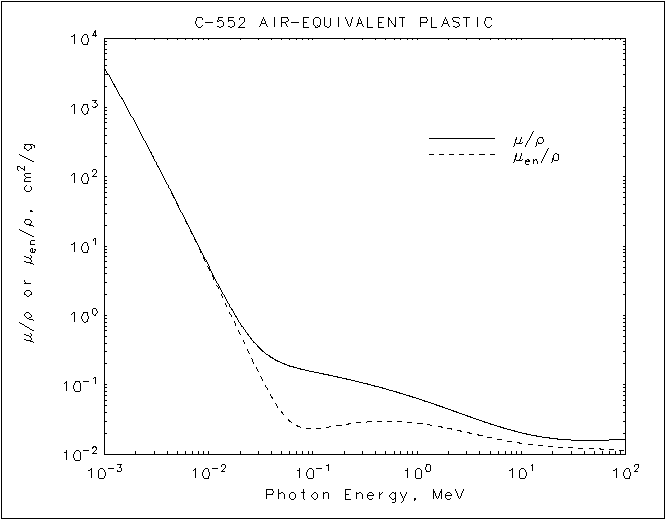

C-552 Air-equivalent Plastic
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.764E+03 |
3.747E+03 |
| 1.50000E-03 |
1.281E+03 |
1.276E+03 |
| 1.83890E-03 |
7.300E+02 |
7.271E+02 |
| 14 K |
1.83890E-03 |
7.415E+02 |
7.380E+02 |
| |
2.00000E-03 |
5.868E+02 |
5.840E+02 |
| 3.00000E-03 |
1.845E+02 |
1.832E+02 |
| 4.00000E-03 |
7.961E+01 |
7.873E+01 |
| 5.00000E-03 |
4.110E+01 |
4.041E+01 |
| 6.00000E-03 |
2.384E+01 |
2.327E+01 |
| 8.00000E-03 |
1.007E+01 |
9.632E+00 |
| 1.00000E-02 |
5.179E+00 |
4.817E+00 |
| 1.50000E-02 |
1.623E+00 |
1.346E+00 |
| 2.00000E-02 |
7.794E-01 |
5.409E-01 |
| 3.00000E-02 |
3.535E-01 |
1.531E-01 |
| 4.00000E-02 |
2.482E-01 |
6.778E-02 |
| 5.00000E-02 |
2.078E-01 |
4.060E-02 |
| 6.00000E-02 |
1.874E-01 |
3.015E-02 |
| 8.00000E-02 |
1.663E-01 |
2.395E-02 |
| 1.00000E-01 |
1.542E-01 |
2.320E-02 |
| 1.50000E-01 |
1.357E-01 |
2.495E-02 |
| 2.00000E-01 |
1.234E-01 |
2.674E-02 |
| 3.00000E-01 |
1.068E-01 |
2.874E-02 |
| 4.00000E-01 |
9.558E-02 |
2.952E-02 |
| 5.00000E-01 |
8.722E-02 |
2.970E-02 |
| 6.00000E-01 |
8.064E-02 |
2.956E-02 |
| 8.00000E-01 |
7.081E-02 2.885E-02 |
| 1.00000E+00 |
6.365E-02 |
2.792E-02 |
| 1.25000E+00 |
5.693E-02 |
2.668E-02 |
| 1.50000E+00 |
5.182E-02 |
2.551E-02 |
| 2.00000E+00 |
4.450E-02 |
2.347E-02 |
| 3.00000E+00 |
3.581E-02 |
2.057E-02 |
| 4.00000E+00 |
3.076E-02 |
1.867E-02 |
| 5.00000E+00 |
2.746E-02 |
1.735E-02 |
| 6.00000E+00 |
2.515E-02 |
1.640E-02 |
| 8.00000E+00 |
2.215E-02 |
1.513E-02 |
| 1.00000E+01 |
2.031E-02 |
1.435E-02 |
| 1.50000E+01 |
1.791E-02 |
1.330E-02 |
| 2.00000E+01 |
1.683E-02 |
1.281E-02 |
|
|
C-552 Air-equivalent Plastic
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.764E+03 3.747E+03
1.50000E-03 1.281E+03 1.276E+03
1.83890E-03 7.300E+02 7.271E+02
14 K 1.83890E-03 7.415E+02 7.380E+02
2.00000E-03 5.868E+02 5.840E+02
3.00000E-03 1.845E+02 1.832E+02
4.00000E-03 7.961E+01 7.873E+01
5.00000E-03 4.110E+01 4.041E+01
6.00000E-03 2.384E+01 2.327E+01
8.00000E-03 1.007E+01 9.632E+00
1.00000E-02 5.179E+00 4.817E+00
1.50000E-02 1.623E+00 1.346E+00
2.00000E-02 7.794E-01 5.409E-01
3.00000E-02 3.535E-01 1.531E-01
4.00000E-02 2.482E-01 6.778E-02
5.00000E-02 2.078E-01 4.060E-02
6.00000E-02 1.874E-01 3.015E-02
8.00000E-02 1.663E-01 2.395E-02
1.00000E-01 1.542E-01 2.320E-02
1.50000E-01 1.357E-01 2.495E-02
2.00000E-01 1.234E-01 2.674E-02
3.00000E-01 1.068E-01 2.874E-02
4.00000E-01 9.558E-02 2.952E-02
5.00000E-01 8.722E-02 2.970E-02
6.00000E-01 8.064E-02 2.956E-02
8.00000E-01 7.081E-02 2.885E-02
1.00000E+00 6.365E-02 2.792E-02
1.25000E+00 5.693E-02 2.668E-02
1.50000E+00 5.182E-02 2.551E-02
2.00000E+00 4.450E-02 2.347E-02
3.00000E+00 3.581E-02 2.057E-02
4.00000E+00 3.076E-02 1.867E-02
5.00000E+00 2.746E-02 1.735E-02
6.00000E+00 2.515E-02 1.640E-02
8.00000E+00 2.215E-02 1.513E-02
1.00000E+01 2.031E-02 1.435E-02
1.50000E+01 1.791E-02 1.330E-02
2.00000E+01 1.683E-02 1.281E-02
|
