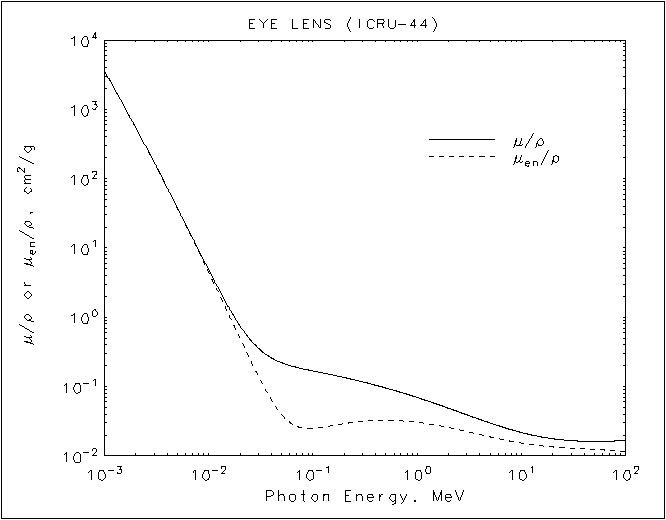

Eye Lens (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.599E+03 |
3.588E+03 |
| 1.03542E-03 |
3.282E+03 |
3.273E+03 |
| 1.07210E-03 |
2.992E+03 |
2.984E+03 |
| 11 K |
1.07210E-03 |
2.998E+03 |
2.989E+03 |
| |
1.50000E-03 |
1.206E+03 |
1.203E+03 |
| 2.00000E-03 |
5.386E+02 |
5.368E+02 |
| 2.14550E-03 |
4.410E+02 |
4.393E+02 |
| 15 K |
2.14550E-03 |
4.432E+02 |
4.414E+02 |
| |
2.30297E-03 |
3.619E+02 |
3.603E+02 |
| 2.47200E-03 |
2.952E+02 |
2.938E+02 |
| 16 K |
2.47200E-03 |
3.007E+02 |
2.989E+02 |
| |
2.64140E-03 |
2.485E+02 |
2.469E+02 |
| 2.82240E-03 |
2.053E+02 |
2.038E+02 |
| 17 K |
2.82240E-03 |
2.067E+02 |
2.051E+02 |
| |
3.00000E-03 |
1.733E+02 |
1.719E+02 |
| 4.00000E-03 |
7.446E+01 |
7.353E+01 |
| 5.00000E-03 |
3.834E+01 |
3.764E+01 |
| 6.00000E-03 |
2.221E+01 |
2.163E+01 |
| 8.00000E-03 |
9.372E+00 |
8.931E+00 |
| 1.00000E-02 |
4.829E+00 |
4.458E+00 |
| 1.50000E-02 |
1.531E+00 |
1.242E+00 |
| 2.00000E-02 |
7.510E-01 |
4.988E-01 |
| 3.00000E-02 |
3.570E-01 |
1.421E-01 |
| 4.00000E-02 |
2.590E-01 |
6.418E-02 |
| 5.00000E-02 |
2.209E-01 |
3.961E-02 |
| 6.00000E-02 |
2.013E-01 |
3.035E-02 |
| 8.00000E-02 |
1.803E-01 |
2.518E-02 |
| 1.00000E-01 |
1.679E-01 |
2.490E-02 |
| 1.50000E-01 |
1.482E-01 |
2.719E-02 |
| 2.00000E-01 |
1.350E-01 |
2.922E-02 |
| 3.00000E-01 |
1.169E-01 |
3.146E-02 |
| 4.00000E-01 |
1.046E-01 |
3.231E-02 |
| 5.00000E-01 |
9.547E-02 |
3.252E-02 |
| 6.00000E-01 |
8.827E-02 |
3.237E-02 |
| 8.00000E-01 |
7.752E-02 |
3.160E-02 |
| 1.00000E+00 |
6.969E-02 |
3.058E-02 |
| 1.25000E+00 |
6.232E-02 |
2.922E-02 |
| 1.50000E+00 |
5.671E-02 |
2.793E-02 |
| 2.00000E+00 |
4.869E-02 |
2.570E-02 |
| 3.00000E+00 |
3.908E-02 |
2.247E-02 |
| 4.00000E+00 |
3.349E-02 |
2.033E-02 |
| 5.00000E+00 |
2.981E-02 |
1.883E-02 |
| 6.00000E+00 |
2.722E-02 |
1.774E-02 |
| 8.00000E+00 |
2.383E-02 |
1.626E-02 |
| 1.00000E+01 |
2.174E-02 |
1.534E-02 |
| 1.50000E+01 |
1.896E-02 |
1.407E-02 |
| 2.00000E+01 |
1.767E-02 |
1.346E-02 |
|
|
Eye Lens (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.599E+03 3.588E+03
1.03542E-03 3.282E+03 3.273E+03
1.07210E-03 2.992E+03 2.984E+03
11 K 1.07210E-03 2.998E+03 2.989E+03
1.50000E-03 1.206E+03 1.203E+03
2.00000E-03 5.386E+02 5.368E+02
2.14550E-03 4.410E+02 4.393E+02
15 K 2.14550E-03 4.432E+02 4.414E+02
2.30297E-03 3.619E+02 3.603E+02
2.47200E-03 2.952E+02 2.938E+02
16 K 2.47200E-03 3.007E+02 2.989E+02
2.64140E-03 2.485E+02 2.469E+02
2.82240E-03 2.053E+02 2.038E+02
17 K 2.82240E-03 2.067E+02 2.051E+02
3.00000E-03 1.733E+02 1.719E+02
4.00000E-03 7.446E+01 7.353E+01
5.00000E-03 3.834E+01 3.764E+01
6.00000E-03 2.221E+01 2.163E+01
8.00000E-03 9.372E+00 8.931E+00
1.00000E-02 4.829E+00 4.458E+00
1.50000E-02 1.531E+00 1.242E+00
2.00000E-02 7.510E-01 4.988E-01
3.00000E-02 3.570E-01 1.421E-01
4.00000E-02 2.590E-01 6.418E-02
5.00000E-02 2.209E-01 3.961E-02
6.00000E-02 2.013E-01 3.035E-02
8.00000E-02 1.803E-01 2.518E-02
1.00000E-01 1.679E-01 2.490E-02
1.50000E-01 1.482E-01 2.719E-02
2.00000E-01 1.350E-01 2.922E-02
3.00000E-01 1.169E-01 3.146E-02
4.00000E-01 1.046E-01 3.231E-02
5.00000E-01 9.547E-02 3.252E-02
6.00000E-01 8.827E-02 3.237E-02
8.00000E-01 7.752E-02 3.160E-02
1.00000E+00 6.969E-02 3.058E-02
1.25000E+00 6.232E-02 2.922E-02
1.50000E+00 5.671E-02 2.793E-02
2.00000E+00 4.869E-02 2.570E-02
3.00000E+00 3.908E-02 2.247E-02
4.00000E+00 3.349E-02 2.033E-02
5.00000E+00 2.981E-02 1.883E-02
6.00000E+00 2.722E-02 1.774E-02
8.00000E+00 2.383E-02 1.626E-02
1.00000E+01 2.174E-02 1.534E-02
1.50000E+01 1.896E-02 1.407E-02
2.00000E+01 1.767E-02 1.346E-02
|
