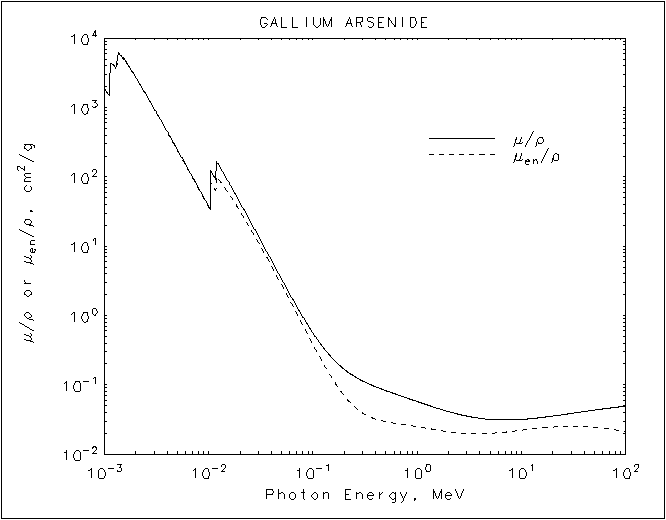

Gallium Arsenide
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
1.917E+03 |
1.911E+03 |
| 1.05613E-03 |
1.685E+03 |
1.680E+03 |
| 1.11540E-03 |
1.481E+03 |
1.476E+03 |
| 31 L3 |
1.11540E-03 |
2.772E+03 |
2.752E+03 |
| |
1.12877E-03 |
3.180E+03 |
3.156E+03 |
| 1.14230E-03 |
3.532E+03 |
3.504E+03 |
| 31 L2 |
1.14230E-03 |
4.372E+03 |
4.333E+03 |
| |
1.21752E-03 |
4.130E+03 |
4.094E+03 |
| 1.29770E-03 |
3.657E+03 |
3.626E+03 |
| 31 L1 |
1.29770E-03 |
4.066E+03 |
4.031E+03 |
| |
1.31034E-03 |
3.971E+03 |
3.937E+03 |
| 1.32310E-03 |
3.879E+03 |
3.846E+03 |
| 33 L3 |
1.32310E-03 |
5.652E+03 |
5.593E+03 |
| |
1.34073E-03 |
5.525E+03 |
5.468E+03 |
| 1.35860E-03 |
5.415E+03 |
5.360E+03 |
| 33 L2 |
1.35860E-03 |
6.266E+03 |
6.197E+03 |
| |
1.50000E-03 |
5.159E+03 |
5.106E+03 |
| 1.52650E-03 |
4.939E+03 |
4.888E+03 |
| 33 L1 |
1.52650E-03 |
5.278E+03 |
5.224E+03 |
| |
2.00000E-03 |
2.731E+03 |
2.706E+03 |
| 3.00000E-03 |
9.702E+02 |
9.614E+02 |
| 4.00000E-03 |
4.539E+02 |
4.486E+02 |
| 5.00000E-03 |
2.495E+02 |
2.456E+02 |
| 6.00000E-03 |
1.524E+02 |
1.492E+02 |
|
| 8.00000E-03 |
6.960E+01 |
6.728E+01 |
| 1.00000E-02 |
3.780E+01 |
3.601E+01 |
| 1.03671E-02 |
3.425E+01 |
3.254E+01 |
| 31 K |
1.03671E-02 |
1.260E+02 |
8.315E+01 |
| |
1.10916E-02 |
1.059E+02 |
7.188E+01 |
| 1.18667E-02 |
8.899E+01 |
6.193E+01 |
| 33 K |
1.18667E-02 |
1.685E+02 |
1.016E+02 |
| |
1.50000E-02 |
9.220E+01 |
6.257E+01 |
| 2.00000E-02 |
4.258E+01 |
3.189E+01 |
| 3.00000E-02 |
1.397E+01 |
1.132E+01 |
| 4.00000E-02 |
6.262E+00 |
5.187E+00 |
| 5.00000E-02 |
3.365E+00 |
2.779E+00 |
| 6.00000E-02 |
2.042E+00 |
1.655E+00 |
| 8.00000E-02 |
9.587E-01 |
7.246E-01 |
| 1.00000E-01 |
5.598E-01 |
3.838E-01 |
| 1.50000E-01 |
2.509E-01 |
1.299E-01 |
| 2.00000E-01 |
1.671E-01 |
6.921E-02 |
| 3.00000E-01 |
1.137E-01 |
3.916E-02 |
| 4.00000E-01 |
9.371E-02 |
3.210E-02 |
| 5.00000E-01 |
8.248E-02 |
2.943E-02 |
| 6.00000E-01 |
7.484E-02 |
2.802E-02 |
| 8.00000E-01 |
6.452E-02 |
2.628E-02 |
| 1.00000E+00 |
5.751E-02 |
2.499E-02 |
| 1.25000E+00 |
5.122E-02 |
2.361E-02 |
| 1.50000E+00 |
4.676E-02 |
2.250E-02 |
| 2.00000E+00 |
4.102E-02 |
2.101E-02 |
| 3.00000E+00 |
3.538E-02 |
1.984E-02 |
| 4.00000E+00 |
3.288E-02 |
1.969E-02 |
| 5.00000E+00 |
3.172E-02 |
1.994E-02 |
| 6.00000E+00 |
3.121E-02 |
2.034E-02 |
| 8.00000E+00 |
3.117E-02 |
2.127E-02 |
| 1.00000E+01 |
3.170E-02 |
2.215E-02 |
| 1.50000E+01 |
3.354E-02 |
2.370E-02 |
| 2.00000E+01 |
3.543E-02 |
2.459E-02 |
|
|
Gallium Arsenide
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 1.917E+03 1.911E+03
1.05613E-03 1.685E+03 1.680E+03
1.11540E-03 1.481E+03 1.476E+03
31 L3 1.11540E-03 2.772E+03 2.752E+03
1.12877E-03 3.180E+03 3.156E+03
1.14230E-03 3.532E+03 3.504E+03
31 L2 1.14230E-03 4.372E+03 4.333E+03
1.21752E-03 4.130E+03 4.094E+03
1.29770E-03 3.657E+03 3.626E+03
31 L1 1.29770E-03 4.066E+03 4.031E+03
1.31034E-03 3.971E+03 3.937E+03
1.32310E-03 3.879E+03 3.846E+03
33 L3 1.32310E-03 5.652E+03 5.593E+03
1.34073E-03 5.525E+03 5.468E+03
1.35860E-03 5.415E+03 5.360E+03
33 L2 1.35860E-03 6.266E+03 6.197E+03
1.50000E-03 5.159E+03 5.106E+03
1.52650E-03 4.939E+03 4.888E+03
33 L1 1.52650E-03 5.278E+03 5.224E+03
2.00000E-03 2.731E+03 2.706E+03
3.00000E-03 9.702E+02 9.614E+02
4.00000E-03 4.539E+02 4.486E+02
5.00000E-03 2.495E+02 2.456E+02
6.00000E-03 1.524E+02 1.492E+02
8.00000E-03 6.960E+01 6.728E+01
1.00000E-02 3.780E+01 3.601E+01
1.03671E-02 3.425E+01 3.254E+01
31 K 1.03671E-02 1.260E+02 8.315E+01
1.10916E-02 1.059E+02 7.188E+01
1.18667E-02 8.899E+01 6.193E+01
33 K 1.18667E-02 1.685E+02 1.016E+02
1.50000E-02 9.220E+01 6.257E+01
2.00000E-02 4.258E+01 3.189E+01
3.00000E-02 1.397E+01 1.132E+01
4.00000E-02 6.262E+00 5.187E+00
5.00000E-02 3.365E+00 2.779E+00
6.00000E-02 2.042E+00 1.655E+00
8.00000E-02 9.587E-01 7.246E-01
1.00000E-01 5.598E-01 3.838E-01
1.50000E-01 2.509E-01 1.299E-01
2.00000E-01 1.671E-01 6.921E-02
3.00000E-01 1.137E-01 3.916E-02
4.00000E-01 9.371E-02 3.210E-02
5.00000E-01 8.248E-02 2.943E-02
6.00000E-01 7.484E-02 2.802E-02
8.00000E-01 6.452E-02 2.628E-02
1.00000E+00 5.751E-02 2.499E-02
1.25000E+00 5.122E-02 2.361E-02
1.50000E+00 4.676E-02 2.250E-02
2.00000E+00 4.102E-02 2.101E-02
3.00000E+00 3.538E-02 1.984E-02
4.00000E+00 3.288E-02 1.969E-02
5.00000E+00 3.172E-02 1.994E-02
6.00000E+00 3.121E-02 2.034E-02
8.00000E+00 3.117E-02 2.127E-02
1.00000E+01 3.170E-02 2.215E-02
1.50000E+01 3.354E-02 2.370E-02
2.00000E+01 3.543E-02 2.459E-02
|
