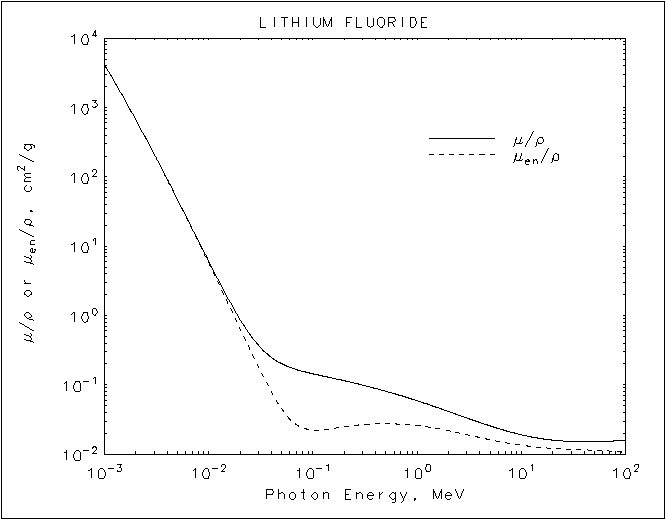

Lithium Fluride graph


Lithium Fluride
HTML table format
Energy         mu over rho         mu e n over rho
 (MeV) (cm2/g) (cm2/g)
1.00000E-03 4.200E+03 4.175E+03
1.50000E-03 1.467E+03 1.460E+03
2.00000E-03 6.698E+02 6.667E+02
3.00000E-03 2.135E+02 2.121E+02
4.00000E-03 9.282E+01 9.188E+01
5.00000E-03 4.815E+01 4.742E+01
6.00000E-03 2.802E+01 2.742E+01
8.00000E-03 1.187E+01 1.142E+01
1.00000E-02 6.101E+00 5.733E+00
1.50000E-02 1.884E+00 1.612E+00
2.00000E-02 8.792E-01 6.494E-01
3.00000E-02 3.727E-01 1.826E-01
4.00000E-02 2.486E-01 7.890E-02
5.00000E-02 2.020E-01 4.541E-02
6.00000E-02 1.791E-01 3.223E-02
8.00000E-02 1.563E-01 2.385E-02
1.00000E-01 1.441E-01 2.229E-02
1.50000E-01 1.260E-01 2.332E-02
2.00000E-01 1.145E-01 2.484E-02
3.00000E-01 9.899E-02 2.663E-02
4.00000E-01 8.853E-02 2.734E-02
5.00000E-01 8.076E-02 2.749E-02
6.00000E-01 7.467E-02 2.736E-02
8.00000E-01 6.557E-02 2.671E-02
1.00000E+00 5.894E-02 2.585E-02
1.25000E+00 5.271E-02 2.470E-02
1.50000E+00 4.798E-02 2.361E-02
2.00000E+00 4.122E-02 2.173E-02
3.00000E+00 3.321E-02 1.907E-02
4.00000E+00 2.857E-02 1.733E-02
5.00000E+00 2.554E-02 1.614E-02
6.00000E+00 2.343E-02 1.528E-02
8.00000E+00 2.069E-02 1.414E-02
1.00000E+01 1.903E-02 1.345E-02
1.50000E+01 1.687E-02 1.253E-02
2.00000E+01 1.592E-02 1.211E-02

Lithium Fluride
ASCII format
___________________________________

    Energy         mu over rho       mu e n over rho
     (MeV)       (cm2/g)    (cm2/g)
___________________________________

  1.00000E-03  4.200E+03  4.175E+03
  1.50000E-03  1.467E+03  1.460E+03
  2.00000E-03  6.698E+02  6.667E+02
  3.00000E-03  2.135E+02  2.121E+02
  4.00000E-03  9.282E+01  9.188E+01
  5.00000E-03  4.815E+01  4.742E+01
  6.00000E-03  2.802E+01  2.742E+01
  8.00000E-03  1.187E+01  1.142E+01
  1.00000E-02  6.101E+00  5.733E+00
  1.50000E-02  1.884E+00  1.612E+00
  2.00000E-02  8.792E-01  6.494E-01
  3.00000E-02  3.727E-01  1.826E-01
  4.00000E-02  2.486E-01  7.890E-02
  5.00000E-02  2.020E-01  4.541E-02
  6.00000E-02  1.791E-01  3.223E-02
  8.00000E-02  1.563E-01  2.385E-02
  1.00000E-01  1.441E-01  2.229E-02
  1.50000E-01  1.260E-01  2.332E-02
  2.00000E-01  1.145E-01  2.484E-02
  3.00000E-01  9.899E-02  2.663E-02
  4.00000E-01  8.853E-02  2.734E-02
  5.00000E-01  8.076E-02  2.749E-02
  6.00000E-01  7.467E-02  2.736E-02
  8.00000E-01  6.557E-02  2.671E-02
  1.00000E+00  5.894E-02  2.585E-02
  1.25000E+00  5.271E-02  2.470E-02
  1.50000E+00  4.798E-02  2.361E-02
  2.00000E+00  4.122E-02  2.173E-02
  3.00000E+00  3.321E-02  1.907E-02
  4.00000E+00  2.857E-02  1.733E-02
  5.00000E+00  2.554E-02  1.614E-02
  6.00000E+00  2.343E-02  1.528E-02
  8.00000E+00  2.069E-02  1.414E-02
  1.00000E+01  1.903E-02  1.345E-02
  1.50000E+01  1.687E-02  1.253E-02
  2.00000E+01  1.592E-02  1.211E-02
