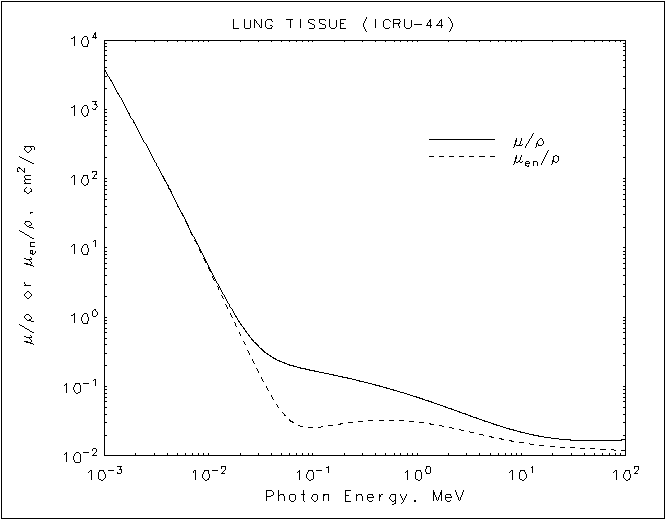

Lung Tissue (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.803E+03 |
3.791E+03 |
| 1.03542E-03 |
3.469E+03 |
3.459E+03 |
| 1.07210E-03 |
3.164E+03 |
3.155E+03 |
| 11 K |
1.07210E-03 |
3.176E+03 |
3.167E+03 |
| |
1.50000E-03 |
1.283E+03 |
1.280E+03 |
| 2.00000E-03 |
5.746E+02 |
5.727E+02 |
| 2.14550E-03 |
4.707E+02 |
4.690E+02 |
| 15 K |
2.14550E-03 |
4.752E+02 |
4.732E+02 |
| |
2.30297E-03 |
3.883E+02 |
3.865E+02 |
| 2.47200E-03 |
3.170E+02 |
3.154E+02 |
| 16 K |
2.47200E-03 |
3.226E+02 |
3.206E+02 |
| |
2.64140E-03 |
2.668E+02 |
2.650E+02 |
| 2.82240E-03 |
2.204E+02 |
2.189E+02 |
| 17 K |
2.82240E-03 |
2.248E+02 |
2.229E+02 |
| |
3.00000E-03 |
1.888E+02 |
1.870E+02 |
| 3.60740E-03 |
1.103E+02 |
1.091E+02 |
| 19 K |
3.60740E-03 |
1.125E+02 |
1.110E+02 |
| |
4.00000E-03 |
8.306E+01 |
8.181E+01 |
| 5.00000E-03 |
4.296E+01 |
4.210E+01 |
| 6.00000E-03 |
2.497E+01 |
2.431E+01 |
| 8.00000E-03 |
1.058E+01 |
1.010E+01 |
| 1.00000E-02 |
5.459E+00 |
5.067E+00 |
| 1.50000E-02 |
1.721E+00 |
1.423E+00 |
| 2.00000E-02 |
8.316E-01 |
5.740E-01 |
| 3.00000E-02 |
3.815E-01 |
1.635E-01 |
| 4.00000E-02 |
2.699E-01 |
7.286E-02 |
| 5.00000E-02 |
2.270E-01 |
4.393E-02 |
| 6.00000E-02 |
2.053E-01 |
3.282E-02 |
| 8.00000E-02 |
1.826E-01 |
2.625E-02 |
| 1.00000E-01 |
1.695E-01 |
2.550E-02 |
| 1.50000E-01 |
1.493E-01 |
2.748E-02 |
| 2.00000E-01 |
1.359E-01 |
2.945E-02 |
| 3.00000E-01 |
1.177E-01 |
3.167E-02 |
| 4.00000E-01 |
1.053E-01 |
3.252E-02 |
| 5.00000E-01 |
9.607E-02 |
3.272E-02 |
| 6.00000E-01 |
8.882E-02 |
3.257E-02 |
| 8.00000E-01 |
7.800E-02 |
3.179E-02 |
| 1.00000E+00 |
7.013E-02 |
3.077E-02 |
| 1.25000E+00 |
6.271E-02 |
2.940E-02 |
| 1.50000E+00 |
5.706E-02 |
2.810E-02 |
| 2.00000E+00 |
4.900E-02 |
2.586E-02 |
| 3.00000E+00 |
3.935E-02 |
2.262E-02 |
| 4.00000E+00 |
3.374E-02 |
2.048E-02 |
| 5.00000E+00 |
3.005E-02 |
1.898E-02 |
| 6.00000E+00 |
2.746E-02 |
1.789E-02 |
| 8.00000E+00 |
2.407E-02 |
1.643E-02 |
| 1.00000E+01 |
2.198E-02 |
1.551E-02 |
| 1.50000E+01 |
1.922E-02 |
1.427E-02 |
| 2.00000E+01 |
1.794E-02 |
1.367E-02 |
|
|
Lung Tissue (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.803E+03 3.791E+03
1.03542E-03 3.469E+03 3.459E+03
1.07210E-03 3.164E+03 3.155E+03
11 K 1.07210E-03 3.176E+03 3.167E+03
1.50000E-03 1.283E+03 1.280E+03
2.00000E-03 5.746E+02 5.727E+02
2.14550E-03 4.707E+02 4.690E+02
15 K 2.14550E-03 4.752E+02 4.732E+02
2.30297E-03 3.883E+02 3.865E+02
2.47200E-03 3.170E+02 3.154E+02
16 K 2.47200E-03 3.226E+02 3.206E+02
2.64140E-03 2.668E+02 2.650E+02
2.82240E-03 2.204E+02 2.189E+02
17 K 2.82240E-03 2.248E+02 2.229E+02
3.00000E-03 1.888E+02 1.870E+02
3.60740E-03 1.103E+02 1.091E+02
19 K 3.60740E-03 1.125E+02 1.110E+02
4.00000E-03 8.306E+01 8.181E+01
5.00000E-03 4.296E+01 4.210E+01
6.00000E-03 2.497E+01 2.431E+01
8.00000E-03 1.058E+01 1.010E+01
1.00000E-02 5.459E+00 5.067E+00
1.50000E-02 1.721E+00 1.423E+00
2.00000E-02 8.316E-01 5.740E-01
3.00000E-02 3.815E-01 1.635E-01
4.00000E-02 2.699E-01 7.286E-02
5.00000E-02 2.270E-01 4.393E-02
6.00000E-02 2.053E-01 3.282E-02
8.00000E-02 1.826E-01 2.625E-02
1.00000E-01 1.695E-01 2.550E-02
1.50000E-01 1.493E-01 2.748E-02
2.00000E-01 1.359E-01 2.945E-02
3.00000E-01 1.177E-01 3.167E-02
4.00000E-01 1.053E-01 3.252E-02
5.00000E-01 9.607E-02 3.272E-02
6.00000E-01 8.882E-02 3.257E-02
8.00000E-01 7.800E-02 3.179E-02
1.00000E+00 7.013E-02 3.077E-02
1.25000E+00 6.271E-02 2.940E-02
1.50000E+00 5.706E-02 2.810E-02
2.00000E+00 4.900E-02 2.586E-02
3.00000E+00 3.935E-02 2.262E-02
4.00000E+00 3.374E-02 2.048E-02
5.00000E+00 3.005E-02 1.898E-02
6.00000E+00 2.746E-02 1.789E-02
8.00000E+00 2.407E-02 1.643E-02
1.00000E+01 2.198E-02 1.551E-02
1.50000E+01 1.922E-02 1.427E-02
2.00000E+01 1.794E-02 1.367E-02
|
