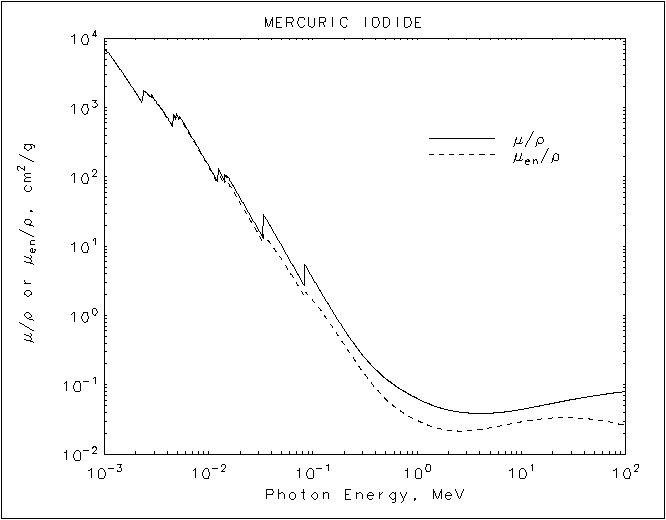

Mercuric Iodide
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
7.213E+03 |
7.197E+03 |
| 1.03542E-03 |
6.724E+03 |
6.709E+03 |
| 1.07210E-03 |
6.258E+03 |
6.244E+03 |
| 53 M1 |
1.07210E-03 |
6.446E+03 |
6.431E+03 |
| |
1.50000E-03 |
3.149E+03 |
3.137E+03 |
| 2.00000E-03 |
1.638E+03 |
1.628E+03 |
| 2.29490E-03 |
1.188E+03 |
1.178E+03 |
| 80 M5 |
2.29490E-03 |
1.238E+03 |
1.227E+03 |
| |
2.33947E-03 |
1.384E+03 |
1.367E+03 |
| 2.38490E-03 |
1.678E+03 |
1.652E+03 |
| 80 M4 |
2.38490E-03 |
1.751E+03 |
1.722E+03 |
| |
2.60577E-03 |
1.582E+03 |
1.554E+03 |
| 2.84710E-03 |
1.390E+03 |
1.364E+03 |
| 80 M3 |
2.84710E-03 |
1.531E+03 |
1.502E+03 |
| |
3.00000E-03 |
1.349E+03 |
1.324E+03 |
| 3.27850E-03 |
1.085E+03 |
1.064E+03 |
| 80 M2 |
3.27850E-03 |
1.130E+03 |
1.109E+03 |
| |
3.41712E-03 |
1.024E+03 |
1.002E+03 |
| 3.56160E-03 |
9.261E+02 |
9.081E+02 |
| 80 M1 |
3.56160E-03 |
9.539E+02 |
9.354E+02 |
| |
4.00000E-03 |
7.218E+02 |
7.072E+02 |
| 4.55710E-03 |
5.247E+02 |
5.132E+02 |
| 53 L3 |
4.55710E-03 |
8.017E+02 |
7.693E+02 |
| |
4.70229E-03 |
7.500E+02 |
7.197E+02 |
| 4.85210E-03 |
6.969E+02 |
6.690E+02 |
| 53 L2 |
4.85210E-03 |
8.258E+02 |
7.866E+02 |
| |
5.00000E-03 |
7.741E+02 |
7.376E+02 |
| 5.18810E-03 |
7.052E+02 |
6.726E+02 |
| 53 L1 |
5.18810E-03 |
7.707E+02 |
7.332E+02 |
| |
6.00000E-03 |
5.385E+02 |
5.138E+02 |
| 8.00000E-03 |
2.577E+02 |
2.463E+02 |
| 1.00000E-02 |
1.447E+02 |
1.379E+02 |
| 1.22839E-02 |
8.459E+01 |
8.001E+01 |
| 80 L3 |
1.22839E-02 |
1.311E+02 |
1.133E+02 |
| |
1.32113E-02 |
1.079E+02 |
9.385E+01 |
| 1.42087E-02 |
8.896E+01 |
7.778E+01 |
| 80 L2 |
1.42087E-02 |
1.090E+02 |
9.059E+01 |
| |
1.45206E-02 |
1.035E+02 |
8.618E+01 |
| 1.48393E-02 |
9.793E+01 |
8.172E+01 |
| 80 L1 |
1.48393E-02 |
1.080E+02 |
8.910E+01 |
| |
1.50000E-02 |
1.050E+02 |
8.678E+01 |
| 2.00000E-02 |
5.006E+01 |
4.254E+01 |
| 3.00000E-02 |
1.732E+01 |
1.490E+01 |
| 3.31694E-02 |
1.332E+01 |
1.143E+01 |
| 53 K |
3.31694E-02 |
2.967E+01 |
1.485E+01 |
| |
4.00000E-02 |
1.827E+01 |
1.041E+01 |
| 5.00000E-02 |
1.019E+01 |
6.462E+00 |
| 6.00000E-02 |
6.301E+00 |
4.236E+00 |
| 8.00000E-02 |
2.958E+00 |
2.088E+00 |
| 8.31023E-02 |
2.679E+00 |
1.897E+00 |
| 80 K |
8.31023E-02 |
5.508E+00 |
2.240E+00 |
| |
1.00000E-01 |
3.415E+00 |
1.651E+00 |
| 1.50000E-01 |
1.232E+00 |
7.225E-01 |
| 2.00000E-01 |
6.220E-01 |
3.785E-01 |
| 3.00000E-01 |
2.682E-01 |
1.554E-01 |
| 4.00000E-01 |
1.661E-01 |
8.937E-02 |
| 5.00000E-01 |
1.228E-01 |
6.248E-02 |
| 6.00000E-01 |
9.985E-02 |
4.909E-02 |
| 8.00000E-01 |
7.601E-02 |
3.648E-02 |
| 1.00000E+00 |
6.350E-02 |
3.058E-02 |
| 1.25000E+00 |
5.421E-02 |
2.641E-02 |
| 1.50000E+00 |
4.882E-02 |
2.407E-02 |
| 2.00000E+00 |
4.323E-02 |
2.204E-02 |
| 3.00000E+00 |
3.933E-02 |
2.171E-02 |
| 4.00000E+00 |
3.856E-02 |
2.275E-02 |
| 5.00000E+00 |
3.889E-02 |
2.402E-02 |
| 6.00000E+00 |
3.967E-02 |
2.527E-02 |
| 8.00000E+00 |
4.181E-02 |
2.747E-02 |
| 1.00000E+01 |
4.415E-02 |
2.923E-02 |
| 1.50000E+01 |
4.966E-02 |
3.206E-02 |
| 2.00000E+01 |
5.410E-02 |
3.328E-02 |
|
|
Mercuric Iodide
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 7.213E+03 7.197E+03
1.03542E-03 6.724E+03 6.709E+03
1.07210E-03 6.258E+03 6.244E+03
53 M1 1.07210E-03 6.446E+03 6.431E+03
1.50000E-03 3.149E+03 3.137E+03
2.00000E-03 1.638E+03 1.628E+03
2.29490E-03 1.188E+03 1.178E+03
80 M5 2.29490E-03 1.238E+03 1.227E+03
2.33947E-03 1.384E+03 1.367E+03
2.38490E-03 1.678E+03 1.652E+03
80 M4 2.38490E-03 1.751E+03 1.722E+03
2.60577E-03 1.582E+03 1.554E+03
2.84710E-03 1.390E+03 1.364E+03
80 M3 2.84710E-03 1.531E+03 1.502E+03
3.00000E-03 1.349E+03 1.324E+03
3.27850E-03 1.085E+03 1.064E+03
80 M2 3.27850E-03 1.130E+03 1.109E+03
3.41712E-03 1.024E+03 1.002E+03
3.56160E-03 9.261E+02 9.081E+02
80 M1 3.56160E-03 9.539E+02 9.354E+02
4.00000E-03 7.218E+02 7.072E+02
4.55710E-03 5.247E+02 5.132E+02
53 L3 4.55710E-03 8.017E+02 7.693E+02
4.70229E-03 7.500E+02 7.197E+02
4.85210E-03 6.969E+02 6.690E+02
53 L2 4.85210E-03 8.258E+02 7.866E+02
5.00000E-03 7.741E+02 7.376E+02
5.18810E-03 7.052E+02 6.726E+02
53 L1 5.18810E-03 7.707E+02 7.332E+02
6.00000E-03 5.385E+02 5.138E+02
8.00000E-03 2.577E+02 2.463E+02
1.00000E-02 1.447E+02 1.379E+02
1.22839E-02 8.459E+01 8.001E+01
80 L3 1.22839E-02 1.311E+02 1.133E+02
1.32113E-02 1.079E+02 9.385E+01
1.42087E-02 8.896E+01 7.778E+01
80 L2 1.42087E-02 1.090E+02 9.059E+01
1.45206E-02 1.035E+02 8.618E+01
1.48393E-02 9.793E+01 8.172E+01
80 L1 1.48393E-02 1.080E+02 8.910E+01
1.50000E-02 1.050E+02 8.678E+01
2.00000E-02 5.006E+01 4.254E+01
3.00000E-02 1.732E+01 1.490E+01
3.31694E-02 1.332E+01 1.143E+01
53 K 3.31694E-02 2.967E+01 1.485E+01
4.00000E-02 1.827E+01 1.041E+01
5.00000E-02 1.019E+01 6.462E+00
6.00000E-02 6.301E+00 4.236E+00
8.00000E-02 2.958E+00 2.088E+00
8.31023E-02 2.679E+00 1.897E+00
80 K 8.31023E-02 5.508E+00 2.240E+00
1.00000E-01 3.415E+00 1.651E+00
1.50000E-01 1.232E+00 7.225E-01
2.00000E-01 6.220E-01 3.785E-01
3.00000E-01 2.682E-01 1.554E-01
4.00000E-01 1.661E-01 8.937E-02
5.00000E-01 1.228E-01 6.248E-02
6.00000E-01 9.985E-02 4.909E-02
8.00000E-01 7.601E-02 3.648E-02
1.00000E+00 6.350E-02 3.058E-02
1.25000E+00 5.421E-02 2.641E-02
1.50000E+00 4.882E-02 2.407E-02
2.00000E+00 4.323E-02 2.204E-02
3.00000E+00 3.933E-02 2.171E-02
4.00000E+00 3.856E-02 2.275E-02
5.00000E+00 3.889E-02 2.402E-02
6.00000E+00 3.967E-02 2.527E-02
8.00000E+00 4.181E-02 2.747E-02
1.00000E+01 4.415E-02 2.923E-02
1.50000E+01 4.966E-02 3.206E-02
2.00000E+01 5.410E-02 3.328E-02
|
