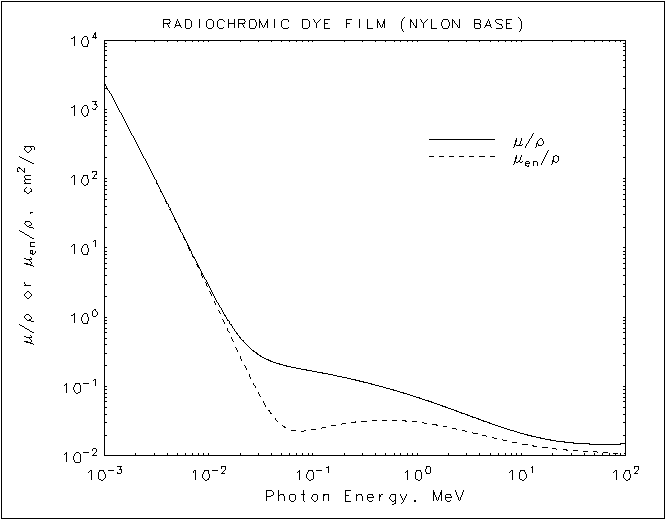

Radiochromic Dye Film (Nylon Base)
HTML table format
|
|
| Energy |
|
 |
|
 |
| (MeV) |
(cm2/g) |
(cm2/g) |
|
| 1.00000E-03 |
2.439E+03 |
2.435E+03 |
| 1.50000E-03 |
7.897E+02 |
7.880E+02 |
| 2.00000E-03 |
3.458E+02 |
3.447E+02 |
| 3.00000E-03 |
1.050E+02 |
1.042E+02 |
| 4.00000E-03 |
4.435E+01 |
4.374E+01 |
| 5.00000E-03 |
2.259E+01 |
2.209E+01 |
| 6.00000E-03 |
1.300E+01 |
1.256E+01 |
| 8.00000E-03 |
5.465E+00 |
5.102E+00 |
| 1.00000E-02 |
2.837E+00 |
2.517E+00 |
| 1.50000E-02 |
9.545E-01 |
6.891E-01 |
| 2.00000E-02 |
5.132E-01 |
2.755E-01 |
| 3.00000E-02 |
2.890E-01 |
8.108E-02 |
| 4.00000E-02 |
2.312E-01 |
4.013E-02 |
| 5.00000E-02 |
2.071E-01 |
2.802E-02 |
| 6.00000E-02 |
1.936E-01 |
2.401E-02 |
| 8.00000E-02 |
1.774E-01 |
2.278E-02 |
| 1.00000E-01 |
1.666E-01 |
2.381E-02 |
| 1.50000E-01 |
1.482E-01 |
2.701E-02 |
| 2.00000E-01 |
1.353E-01 |
2.925E-02 |
| 3.00000E-01 |
1.174E-01 |
3.159E-02 |
| 4.00000E-01 |
1.051E-01 |
3.247E-02 |
| 5.00000E-01 |
9.592E-02 |
3.268E-02 |
| 6.00000E-01 |
8.869E-02 |
3.254E-02 |
| 8.00000E-01 |
7.789E-02 |
3.177E-02 |
| 1.00000E+00 |
7.003E-02 |
3.074E-02 |
| 1.25000E+00 |
6.263E-02 |
2.939E-02 |
| 1.50000E+00 |
5.699E-02 |
2.809E-02 |
| 2.00000E+00 |
4.887E-02 |
2.582E-02 |
| 3.00000E+00 |
3.912E-02 |
2.250E-02 |
| 4.00000E+00 |
3.339E-02 |
2.027E-02 |
| 5.00000E+00 |
2.960E-02 |
1.869E-02 |
| 6.00000E+00 |
2.692E-02 |
1.752E-02 |
| 8.00000E+00 |
2.338E-02 |
1.592E-02 |
| 1.00000E+01 |
2.117E-02 |
1.489E-02 |
| 1.50000E+01 |
1.817E-02 |
1.345E-02 |
| 2.00000E+01 |
1.672E-02 |
1.272E-02 |
|
|
Radiochromic Dye Film (Nylon Base)
ASCII format
_________________________________
Energy
(MeV) (cm2/g) (cm2/g)
_________________________________
1.00000E-03 2.439E+03 2.435E+03
1.50000E-03 7.897E+02 7.880E+02
2.00000E-03 3.458E+02 3.447E+02
3.00000E-03 1.050E+02 1.042E+02
4.00000E-03 4.435E+01 4.374E+01
5.00000E-03 2.259E+01 2.209E+01
6.00000E-03 1.300E+01 1.256E+01
8.00000E-03 5.465E+00 5.102E+00
1.00000E-02 2.837E+00 2.517E+00
1.50000E-02 9.545E-01 6.891E-01
2.00000E-02 5.132E-01 2.755E-01
3.00000E-02 2.890E-01 8.108E-02
4.00000E-02 2.312E-01 4.013E-02
5.00000E-02 2.071E-01 2.802E-02
6.00000E-02 1.936E-01 2.401E-02
8.00000E-02 1.774E-01 2.278E-02
1.00000E-01 1.666E-01 2.381E-02
1.50000E-01 1.482E-01 2.701E-02
2.00000E-01 1.353E-01 2.925E-02
3.00000E-01 1.174E-01 3.159E-02
4.00000E-01 1.051E-01 3.247E-02
5.00000E-01 9.592E-02 3.268E-02
6.00000E-01 8.869E-02 3.254E-02
8.00000E-01 7.789E-02 3.177E-02
1.00000E+00 7.003E-02 3.074E-02
1.25000E+00 6.263E-02 2.939E-02
1.50000E+00 5.699E-02 2.809E-02
2.00000E+00 4.887E-02 2.582E-02
3.00000E+00 3.912E-02 2.250E-02
4.00000E+00 3.339E-02 2.027E-02
5.00000E+00 2.960E-02 1.869E-02
6.00000E+00 2.692E-02 1.752E-02
8.00000E+00 2.338E-02 1.592E-02
1.00000E+01 2.117E-02 1.489E-02
1.50000E+01 1.817E-02 1.345E-02
2.00000E+01 1.672E-02 1.272E-02
|
