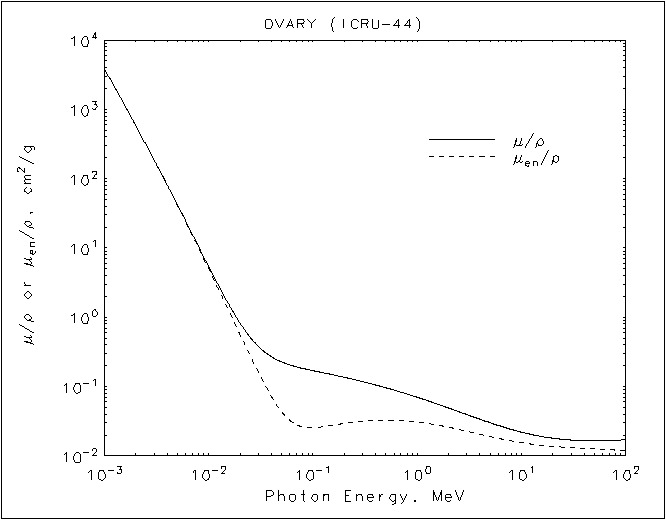

Ovary (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.835E+03 |
3.823E+03 |
| 1.03542E-03 |
3.499E+03 |
3.489E+03 |
| 1.07210E-03 |
3.191E+03 |
3.182E+03 |
| 11 K |
1.07210E-03 |
3.203E+03 |
3.194E+03 |
| |
1.50000E-03 |
1.295E+03 |
1.291E+03 |
| 2.00000E-03 |
5.800E+02 |
5.780E+02 |
| 2.14550E-03 |
4.752E+02 |
4.734E+02 |
| 15 K |
2.14550E-03 |
4.796E+02 |
4.776E+02 |
| |
2.30297E-03 |
3.920E+02 |
3.902E+02 |
| 2.47200E-03 |
3.200E+02 |
3.184E+02 |
| 16 K |
2.47200E-03 |
3.237E+02 |
3.218E+02 |
| |
2.64140E-03 |
2.677E+02 |
2.660E+02 |
| 2.82240E-03 |
2.211E+02 |
2.196E+02 |
| 17 K |
2.82240E-03 |
2.240E+02 |
2.223E+02 |
| |
3.00000E-03 |
1.880E+02 |
1.864E+02 |
| 3.60740E-03 |
1.098E+02 |
1.086E+02 |
| 19 K |
3.60740E-03 |
1.119E+02 |
1.105E+02 |
| |
4.00000E-03 |
8.261E+01 |
8.142E+01 |
| 5.00000E-03 |
4.269E+01 |
4.185E+01 |
| 6.00000E-03 |
2.479E+01 |
2.414E+01 |
| 8.00000E-03 |
1.049E+01 |
1.002E+01 |
| 1.00000E-02 |
5.410E+00 |
5.019E+00 |
| 1.50000E-02 |
1.705E+00 |
1.407E+00 |
| 2.00000E-02 |
8.247E-01 |
5.669E-01 |
| 3.00000E-02 |
3.796E-01 |
1.614E-01 |
| 4.00000E-02 |
2.693E-01 |
7.196E-02 |
| 5.00000E-02 |
2.269E-01 |
4.349E-02 |
| 6.00000E-02 |
2.054E-01 |
3.258E-02 |
| 8.00000E-02 |
1.828E-01 |
2.617E-02 |
| 1.00000E-01 |
1.698E-01 |
2.548E-02 |
| 1.50000E-01 |
1.496E-01 |
2.751E-02 |
| 2.00000E-01 |
1.361E-01 |
2.950E-02 |
| 3.00000E-01 |
1.179E-01 |
3.172E-02 |
| 4.00000E-01 |
1.055E-01 |
3.258E-02 |
| 5.00000E-01 |
9.624E-02 |
3.278E-02 |
| 6.00000E-01 |
8.898E-02 |
3.263E-02 |
| 8.00000E-01 |
7.814E-02 |
3.185E-02 |
| 1.00000E+00 |
7.026E-02 |
3.083E-02 |
| 1.25000E+00 |
6.282E-02 |
2.946E-02 |
| 1.50000E+00 |
5.717E-02 |
2.815E-02 |
| 2.00000E+00 |
4.909E-02 |
2.591E-02 |
| 3.00000E+00 |
3.942E-02 |
2.266E-02 |
| 4.00000E+00 |
3.380E-02 |
2.052E-02 |
| 5.00000E+00 |
3.010E-02 |
1.902E-02 |
| 6.00000E+00 |
2.750E-02 |
1.792E-02 |
| 8.00000E+00 |
2.411E-02 |
1.646E-02 |
| 1.00000E+01 |
2.202E-02 |
1.554E-02 |
| 1.50000E+01 |
1.924E-02 |
1.429E-02 |
| 2.00000E+01 |
1.797E-02 |
1.369E-02 |
|
|
Ovary (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.835E+03 3.823E+03
1.03542E-03 3.499E+03 3.489E+03
1.07210E-03 3.191E+03 3.182E+03
11 K 1.07210E-03 3.203E+03 3.194E+03
1.50000E-03 1.295E+03 1.291E+03
2.00000E-03 5.800E+02 5.780E+02
2.14550E-03 4.752E+02 4.734E+02
15 K 2.14550E-03 4.796E+02 4.776E+02
2.30297E-03 3.920E+02 3.902E+02
2.47200E-03 3.200E+02 3.184E+02
16 K 2.47200E-03 3.237E+02 3.218E+02
2.64140E-03 2.677E+02 2.660E+02
2.82240E-03 2.211E+02 2.196E+02
17 K 2.82240E-03 2.240E+02 2.223E+02
3.00000E-03 1.880E+02 1.864E+02
3.60740E-03 1.098E+02 1.086E+02
19 K 3.60740E-03 1.119E+02 1.105E+02
4.00000E-03 8.261E+01 8.142E+01
5.00000E-03 4.269E+01 4.185E+01
6.00000E-03 2.479E+01 2.414E+01
8.00000E-03 1.049E+01 1.002E+01
1.00000E-02 5.410E+00 5.019E+00
1.50000E-02 1.705E+00 1.407E+00
2.00000E-02 8.247E-01 5.669E-01
3.00000E-02 3.796E-01 1.614E-01
4.00000E-02 2.693E-01 7.196E-02
5.00000E-02 2.269E-01 4.349E-02
6.00000E-02 2.054E-01 3.258E-02
8.00000E-02 1.828E-01 2.617E-02
1.00000E-01 1.698E-01 2.548E-02
1.50000E-01 1.496E-01 2.751E-02
2.00000E-01 1.361E-01 2.950E-02
3.00000E-01 1.179E-01 3.172E-02
4.00000E-01 1.055E-01 3.258E-02
5.00000E-01 9.624E-02 3.278E-02
6.00000E-01 8.898E-02 3.263E-02
8.00000E-01 7.814E-02 3.185E-02
1.00000E+00 7.026E-02 3.083E-02
1.25000E+00 6.282E-02 2.946E-02
1.50000E+00 5.717E-02 2.815E-02
2.00000E+00 4.909E-02 2.591E-02
3.00000E+00 3.942E-02 2.266E-02
4.00000E+00 3.380E-02 2.052E-02
5.00000E+00 3.010E-02 1.902E-02
6.00000E+00 2.750E-02 1.792E-02
8.00000E+00 2.411E-02 1.646E-02
1.00000E+01 2.202E-02 1.554E-02
1.50000E+01 1.924E-02 1.429E-02
2.00000E+01 1.797E-02 1.369E-02
|
