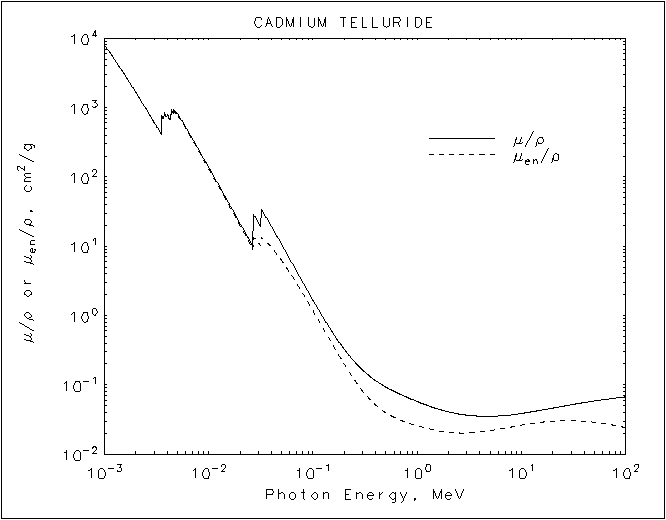

Cadmium Telluride
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
7.927E+03 |
7.913E+03 |
| 1.00300E-03 |
7.875E+03 |
7.862E+03 |
| 1.00600E-03 |
7.824E+03 |
7.811E+03 |
| 52 M1 |
1.00600E-03 |
8.014E+03 |
8.001E+03 |
| |
1.50000E-03 |
3.291E+03 |
3.281E+03 |
| 2.00000E-03 |
1.664E+03 |
1.656E+03 |
| 3.00000E-03 |
6.146E+02 |
6.082E+02 |
| 3.53750E-03 |
4.064E+02 |
4.004E+02 |
| 48 L3 |
3.53750E-03 |
7.787E+02 |
7.525E+02 |
| |
3.63101E-03 |
7.300E+02 |
7.056E+02 |
| 3.72700E-03 |
6.840E+02 |
6.613E+02 |
| 48 L2 |
3.72700E-03 |
8.601E+02 |
8.266E+02 |
| |
4.00000E-03 |
7.230E+02 |
6.957E+02 |
| 4.01800E-03 |
7.151E+02 |
6.881E+02 |
| 48 L1 |
4.01800E-03 |
7.934E+02 |
7.624E+02 |
| |
4.17657E-03 |
7.221E+02 |
6.944E+02 |
| 4.34140E-03 |
6.562E+02 |
6.313E+02 |
| 52 L3 |
4.34140E-03 |
9.328E+02 |
8.883E+02 |
| |
4.47465E-03 |
8.739E+02 |
8.328E+02 |
| 4.61200E-03 |
8.135E+02 |
7.759E+02 |
| 52 L2 |
4.61200E-03 |
9.438E+02 |
8.955E+02 |
| |
4.77280E-03 |
8.702E+02 |
8.265E+02 |
| 4.93920E-03 |
7.999E+02 |
7.606E+02 |
| 52 L1 |
4.93920E-03 |
8.653E+02 |
8.214E+02 |
| |
5.00000E-03 |
8.392E+02 |
7.970E+02 |
| 6.00000E-03 |
5.286E+02 |
5.046E+02 |
| 8.00000E-03 |
2.492E+02 |
2.389E+02 |
| 1.00000E-02 |
1.381E+02 |
1.322E+02 |
| 1.50000E-02 |
4.657E+01 |
4.404E+01 |
| 2.00000E-02 |
2.144E+01 |
1.988E+01 |
| 2.67112E-02 |
9.834E+00 |
8.833E+00 |
| 48 K |
2.67112E-02 |
2.943E+01 |
1.368E+01 |
| |
3.00000E-02 |
2.182E+01 |
1.119E+01 |
| 3.18138E-02 |
1.873E+01 |
1.001E+01 |
| 52 K |
3.18138E-02 |
3.492E+01 |
1.351E+01 |
| |
4.00000E-02 |
1.930E+01 |
9.635E+00 |
| 5.00000E-02 |
1.067E+01 |
6.229E+00 |
| 6.00000E-02 |
6.542E+00 |
4.163E+00 |
| 8.00000E-02 |
3.019E+00 |
2.083E+00 |
| 1.00000E-01 |
1.671E+00 |
1.181E+00 |
| 1.50000E-01 |
6.071E-01 |
4.101E-01 |
| 2.00000E-01 |
3.246E-01 |
1.982E-01 |
| 3.00000E-01 |
1.628E-01 |
8.144E-02 |
| 4.00000E-01 |
1.147E-01 |
5.109E-02 |
| 5.00000E-01 |
9.291E-02 |
3.952E-02 |
| 6.00000E-01 |
8.042E-02 |
3.391E-02 |
| 8.00000E-01 |
6.600E-02 |
2.852E-02 |
| 1.00000E+00 |
5.742E-02 |
2.575E-02 |
| 1.25000E+00 |
5.043E-02 |
2.354E-02 |
| 1.50000E+00 |
4.591E-02 |
2.209E-02 |
| 2.00000E+00 |
4.070E-02 |
2.062E-02 |
| 3.00000E+00 |
3.649E-02 |
2.021E-02 |
| 4.00000E+00 |
3.525E-02 |
2.091E-02 |
| 5.00000E+00 |
3.513E-02 |
2.188E-02 |
| 6.00000E+00 |
3.548E-02 |
2.286E-02 |
| 8.00000E+00 |
3.687E-02 |
2.468E-02 |
| 1.00000E+01 |
3.857E-02 |
2.618E-02 |
| 1.50000E+01 |
4.273E-02 |
2.867E-02 |
| 2.00000E+01 |
4.616E-02 |
2.983E-02 |
|
|
Cadmium Telluride
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 7.927E+03 7.913E+03
1.00300E-03 7.875E+03 7.862E+03
1.00600E-03 7.824E+03 7.811E+03
52 M1 1.00600E-03 8.014E+03 8.001E+03
1.50000E-03 3.291E+03 3.281E+03
2.00000E-03 1.664E+03 1.656E+03
3.00000E-03 6.146E+02 6.082E+02
3.53750E-03 4.064E+02 4.004E+02
48 L3 3.53750E-03 7.787E+02 7.525E+02
3.63101E-03 7.300E+02 7.056E+02
3.72700E-03 6.840E+02 6.613E+02
48 L2 3.72700E-03 8.601E+02 8.266E+02
4.00000E-03 7.230E+02 6.957E+02
4.01800E-03 7.151E+02 6.881E+02
48 L1 4.01800E-03 7.934E+02 7.624E+02
4.17657E-03 7.221E+02 6.944E+02
4.34140E-03 6.562E+02 6.313E+02
52 L3 4.34140E-03 9.328E+02 8.883E+02
4.47465E-03 8.739E+02 8.328E+02
4.61200E-03 8.135E+02 7.759E+02
52 L2 4.61200E-03 9.438E+02 8.955E+02
4.77280E-03 8.702E+02 8.265E+02
4.93920E-03 7.999E+02 7.606E+02
52 L1 4.93920E-03 8.653E+02 8.214E+02
5.00000E-03 8.392E+02 7.970E+02
6.00000E-03 5.286E+02 5.046E+02
8.00000E-03 2.492E+02 2.389E+02
1.00000E-02 1.381E+02 1.322E+02
1.50000E-02 4.657E+01 4.404E+01
2.00000E-02 2.144E+01 1.988E+01
2.67112E-02 9.834E+00 8.833E+00
48 K 2.67112E-02 2.943E+01 1.368E+01
3.00000E-02 2.182E+01 1.119E+01
3.18138E-02 1.873E+01 1.001E+01
52 K 3.18138E-02 3.492E+01 1.351E+01
4.00000E-02 1.930E+01 9.635E+00
5.00000E-02 1.067E+01 6.229E+00
6.00000E-02 6.542E+00 4.163E+00
8.00000E-02 3.019E+00 2.083E+00
1.00000E-01 1.671E+00 1.181E+00
1.50000E-01 6.071E-01 4.101E-01
2.00000E-01 3.246E-01 1.982E-01
3.00000E-01 1.628E-01 8.144E-02
4.00000E-01 1.147E-01 5.109E-02
5.00000E-01 9.291E-02 3.952E-02
6.00000E-01 8.042E-02 3.391E-02
8.00000E-01 6.600E-02 2.852E-02
1.00000E+00 5.742E-02 2.575E-02
1.25000E+00 5.043E-02 2.354E-02
1.50000E+00 4.591E-02 2.209E-02
2.00000E+00 4.070E-02 2.062E-02
3.00000E+00 3.649E-02 2.021E-02
4.00000E+00 3.525E-02 2.091E-02
5.00000E+00 3.513E-02 2.188E-02
6.00000E+00 3.548E-02 2.286E-02
8.00000E+00 3.687E-02 2.468E-02
1.00000E+01 3.857E-02 2.618E-02
1.50000E+01 4.273E-02 2.867E-02
2.00000E+01 4.616E-02 2.983E-02
|
