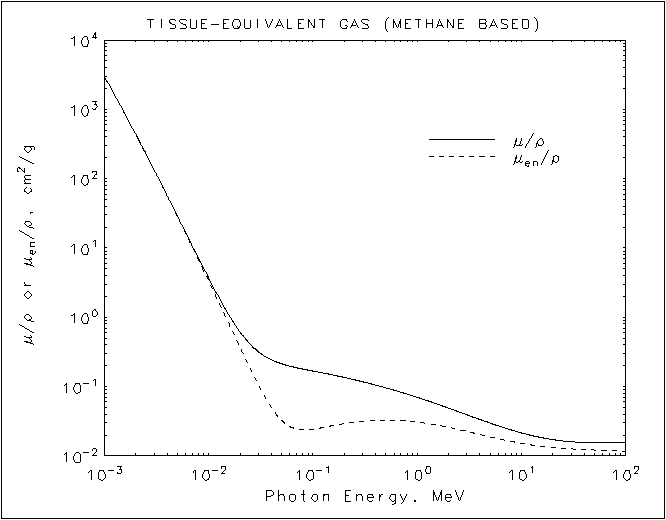

Tissue-Equivalent Gas (Methane Based)
HTML table format
|
|
| Energy |
|
 |
|
 |
| (MeV) |
(cm2/g) |
(cm2/g) |
|
| 1.00000E-03 |
2.993E+03 |
2.986E+03 |
| 1.50000E-03 |
9.878E+02 |
9.854E+02 |
| 2.00000E-03 |
4.376E+02 |
4.361E+02 |
| 3.00000E-03 |
1.347E+02 |
1.338E+02 |
| 4.00000E-03 |
5.734E+01 |
5.665E+01 |
| 5.00000E-03 |
2.935E+01 |
2.878E+01 |
| 6.00000E-03 |
1.694E+01 |
1.645E+01 |
| 8.00000E-03 |
7.124E+00 |
6.730E+00 |
| 1.00000E-02 |
3.679E+00 |
3.338E+00 |
| 1.50000E-02 |
1.197E+00 |
9.207E-01 |
| 2.00000E-02 |
6.129E-01 |
3.685E-01 |
| 3.00000E-02 |
3.177E-01 |
1.063E-01 |
| 4.00000E-02 |
2.431E-01 |
5.002E-02 |
| 5.00000E-02 |
2.132E-01 |
3.278E-02 |
| 6.00000E-02 |
1.972E-01 |
2.663E-02 |
| 8.00000E-02 |
1.790E-01 |
2.380E-02 |
| 1.00000E-01 |
1.675E-01 |
2.430E-02 |
| 1.50000E-01 |
1.486E-01 |
2.714E-02 |
| 2.00000E-01 |
1.355E-01 |
2.930E-02 |
| 3.00000E-01 |
1.174E-01 |
3.161E-02 |
| 4.00000E-01 |
1.051E-01 |
3.248E-02 |
| 5.00000E-01 |
9.594E-02 |
3.269E-02 |
| 6.00000E-01 |
8.871E-02 |
3.254E-02 |
| 8.00000E-01 |
7.790E-02 |
3.177E-02 |
| 1.00000E+00 |
7.004E-02 |
3.075E-02 |
| 1.25000E+00 |
6.264E-02 |
2.938E-02 |
| 1.50000E+00 |
5.700E-02 |
2.809E-02 |
| 2.00000E+00 |
4.890E-02 |
2.583E-02 |
| 3.00000E+00 |
3.919E-02 |
2.254E-02 |
| 4.00000E+00 |
3.351E-02 |
2.035E-02 |
| 5.00000E+00 |
2.976E-02 |
1.881E-02 |
| 6.00000E+00 |
2.711E-02 |
1.767E-02 |
| 8.00000E+00 |
2.363E-02 |
1.614E-02 |
| 1.00000E+01 |
2.146E-02 |
1.516E-02 |
| 1.50000E+01 |
1.855E-02 |
1.383E-02 |
| 2.00000E+01 |
1.717E-02 |
1.318E-02 |
|
|
Tissue-Equivalent Gas (Methane Based)
ASCII format
_________________________________
Energy
(MeV) (cm2/g) (cm2/g)
_________________________________
1.00000E-03 2.993E+03 2.986E+03
1.50000E-03 9.878E+02 9.854E+02
2.00000E-03 4.376E+02 4.361E+02
3.00000E-03 1.347E+02 1.338E+02
4.00000E-03 5.734E+01 5.665E+01
5.00000E-03 2.935E+01 2.878E+01
6.00000E-03 1.694E+01 1.645E+01
8.00000E-03 7.124E+00 6.730E+00
1.00000E-02 3.679E+00 3.338E+00
1.50000E-02 1.197E+00 9.207E-01
2.00000E-02 6.129E-01 3.685E-01
3.00000E-02 3.177E-01 1.063E-01
4.00000E-02 2.431E-01 5.002E-02
5.00000E-02 2.132E-01 3.278E-02
6.00000E-02 1.972E-01 2.663E-02
8.00000E-02 1.790E-01 2.380E-02
1.00000E-01 1.675E-01 2.430E-02
1.50000E-01 1.486E-01 2.714E-02
2.00000E-01 1.355E-01 2.930E-02
3.00000E-01 1.174E-01 3.161E-02
4.00000E-01 1.051E-01 3.248E-02
5.00000E-01 9.594E-02 3.269E-02
6.00000E-01 8.871E-02 3.254E-02
8.00000E-01 7.790E-02 3.177E-02
1.00000E+00 7.004E-02 3.075E-02
1.25000E+00 6.264E-02 2.938E-02
1.50000E+00 5.700E-02 2.809E-02
2.00000E+00 4.890E-02 2.583E-02
3.00000E+00 3.919E-02 2.254E-02
4.00000E+00 3.351E-02 2.035E-02
5.00000E+00 2.976E-02 1.881E-02
6.00000E+00 2.711E-02 1.767E-02
8.00000E+00 2.363E-02 1.614E-02
1.00000E+01 2.146E-02 1.516E-02
1.50000E+01 1.855E-02 1.383E-02
2.00000E+01 1.717E-02 1.318E-02
|
