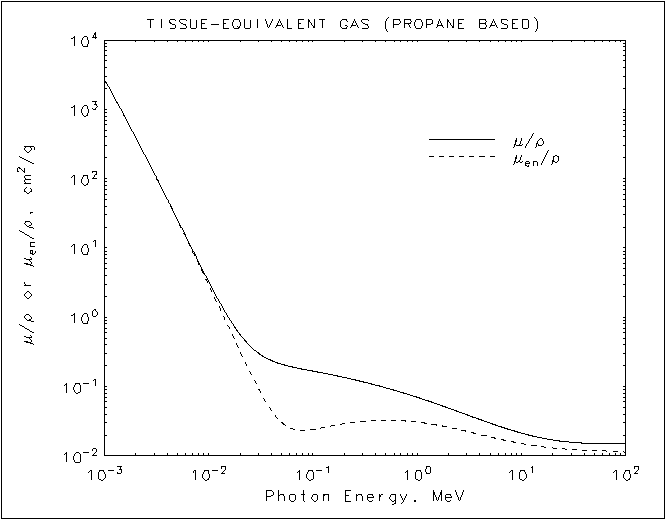

Tissue-Equivalent Gas (Propane Based)
HTML table format
|
|
| Energy |
|
 |
|
 |
| (MeV) |
(cm2/g) |
(cm2/g) |
|
| 1.00000E-03 |
2.721E+03 |
2.715E+03 |
| 1.50000E-03 |
8.909E+02 |
8.888E+02 |
| 2.00000E-03 |
3.928E+02 |
3.915E+02 |
| 3.00000E-03 |
1.202E+02 |
1.194E+02 |
| 4.00000E-03 |
5.103E+01 |
5.038E+01 |
| 5.00000E-03 |
2.607E+01 |
2.553E+01 |
| 6.00000E-03 |
1.503E+01 |
1.456E+01 |
| 8.00000E-03 |
6.320E+00 |
5.941E+00 |
| 1.00000E-02 |
3.272E+00 |
2.940E+00 |
| 1.50000E-02 |
1.080E+00 |
8.087E-01 |
| 2.00000E-02 |
5.648E-01 |
3.236E-01 |
| 3.00000E-02 |
3.040E-01 |
9.413E-02 |
| 4.00000E-02 |
2.375E-01 |
4.526E-02 |
| 5.00000E-02 |
2.104E-01 |
3.050E-02 |
| 6.00000E-02 |
1.955E-01 |
2.538E-02 |
| 8.00000E-02 |
1.783E-01 |
2.332E-02 |
| 1.00000E-01 |
1.672E-01 |
2.408E-02 |
| 1.50000E-01 |
1.485E-01 |
2.709E-02 |
| 2.00000E-01 |
1.355E-01 |
2.929E-02 |
| 3.00000E-01 |
1.175E-01 |
3.162E-02 |
| 4.00000E-01 |
1.052E-01 |
3.250E-02 |
| 5.00000E-01 |
9.599E-02 |
3.271E-02 |
| 6.00000E-01 |
8.876E-02 |
3.256E-02 |
| 8.00000E-01 |
7.795E-02 |
3.179E-02 |
| 1.00000E+00 |
7.008E-02 |
3.077E-02 |
| 1.25000E+00 |
6.267E-02 |
2.941E-02 |
| 1.50000E+00 |
5.703E-02 |
2.811E-02 |
| 2.00000E+00 |
4.892E-02 |
2.584E-02 |
| 3.00000E+00 |
3.918E-02 |
2.254E-02 |
| 4.00000E+00 |
3.347E-02 |
2.033E-02 |
| 5.00000E+00 |
2.970E-02 |
1.877E-02 |
| 6.00000E+00 |
2.703E-02 |
1.762E-02 |
| 8.00000E+00 |
2.352E-02 |
1.605E-02 |
| 1.00000E+01 |
2.133E-02 |
1.505E-02 |
| 1.50000E+01 |
1.837E-02 |
1.368E-02 |
| 2.00000E+01 |
1.695E-02 |
1.301E-02 |
|
|
Tissue-Equivalent Gas (Propane Based)
ASCII format
_________________________________
Energy
(MeV) (cm2/g) (cm2/g)
_________________________________
1.00000E-03 2.721E+03 2.715E+03
1.50000E-03 8.909E+02 8.888E+02
2.00000E-03 3.928E+02 3.915E+02
3.00000E-03 1.202E+02 1.194E+02
4.00000E-03 5.103E+01 5.038E+01
5.00000E-03 2.607E+01 2.553E+01
6.00000E-03 1.503E+01 1.456E+01
8.00000E-03 6.320E+00 5.941E+00
1.00000E-02 3.272E+00 2.940E+00
1.50000E-02 1.080E+00 8.087E-01
2.00000E-02 5.648E-01 3.236E-01
3.00000E-02 3.040E-01 9.413E-02
4.00000E-02 2.375E-01 4.526E-02
5.00000E-02 2.104E-01 3.050E-02
6.00000E-02 1.955E-01 2.538E-02
8.00000E-02 1.783E-01 2.332E-02
1.00000E-01 1.672E-01 2.408E-02
1.50000E-01 1.485E-01 2.709E-02
2.00000E-01 1.355E-01 2.929E-02
3.00000E-01 1.175E-01 3.162E-02
4.00000E-01 1.052E-01 3.250E-02
5.00000E-01 9.599E-02 3.271E-02
6.00000E-01 8.876E-02 3.256E-02
8.00000E-01 7.795E-02 3.179E-02
1.00000E+00 7.008E-02 3.077E-02
1.25000E+00 6.267E-02 2.941E-02
1.50000E+00 5.703E-02 2.811E-02
2.00000E+00 4.892E-02 2.584E-02
3.00000E+00 3.918E-02 2.254E-02
4.00000E+00 3.347E-02 2.033E-02
5.00000E+00 2.970E-02 1.877E-02
6.00000E+00 2.703E-02 1.762E-02
8.00000E+00 2.352E-02 1.605E-02
1.00000E+01 2.133E-02 1.505E-02
1.50000E+01 1.837E-02 1.368E-02
2.00000E+01 1.695E-02 1.301E-02
|
