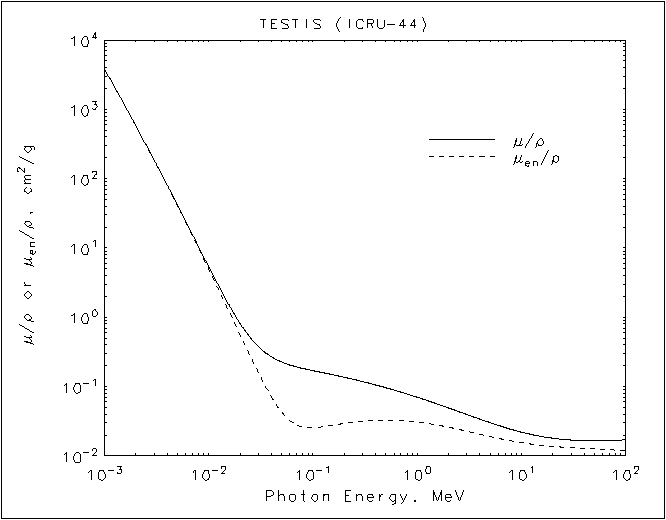

Testis (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.824E+03 |
3.812E+03 |
| 1.03542E-03 |
3.489E+03 |
3.479E+03 |
| 1.07210E-03 |
3.182E+03 |
3.173E+03 |
| 11 K |
1.07210E-03 |
3.194E+03 |
3.184E+03 |
| |
1.50000E-03 |
1.291E+03 |
1.288E+03 |
| 2.00000E-03 |
5.783E+02 |
5.763E+02 |
| 2.14550E-03 |
4.737E+02 |
4.719E+02 |
| 15 K |
2.14550E-03 |
4.759E+02 |
4.740E+02 |
| |
2.30297E-03 |
3.889E+02 |
3.872E+02 |
| 2.47200E-03 |
3.174E+02 |
3.159E+02 |
| 16 K |
2.47200E-03 |
3.211E+02 |
3.193E+02 |
| |
2.64140E-03 |
2.654E+02 |
2.638E+02 |
| 2.82240E-03 |
2.193E+02 |
2.178E+02 |
| 17 K |
2.82240E-03 |
2.222E+02 |
2.205E+02 |
| |
3.00000E-03 |
1.864E+02 |
1.849E+02 |
| 3.60740E-03 |
1.088E+02 |
1.077E+02 |
| 19 K |
3.60740E-03 |
1.109E+02 |
1.095E+02 |
| |
4.00000E-03 |
8.188E+01 |
8.071E+01 |
| 5.00000E-03 |
4.229E+01 |
4.147E+01 |
| 6.00000E-03 |
2.456E+01 |
2.391E+01 |
| 8.00000E-03 |
1.039E+01 |
9.916E+00 |
| 1.00000E-02 |
5.357E+00 |
4.967E+00 |
| 1.50000E-02 |
1.689E+00 |
1.392E+00 |
| 2.00000E-02 |
8.182E-01 |
5.606E-01 |
| 3.00000E-02 |
3.778E-01 |
1.596E-01 |
| 4.00000E-02 |
2.687E-01 |
7.125E-02 |
| 5.00000E-02 |
2.266E-01 |
4.315E-02 |
| 6.00000E-02 |
2.053E-01 |
3.240E-02 |
| 8.00000E-02 |
1.828E-01 |
2.611E-02 |
| 1.00000E-01 |
1.699E-01 |
2.547E-02 |
| 1.50000E-01 |
1.497E-01 |
2.753E-02 |
| 2.00000E-01 |
1.363E-01 |
2.952E-02 |
| 3.00000E-01 |
1.180E-01 |
3.175E-02 |
| 4.00000E-01 |
1.055E-01 |
3.261E-02 |
| 5.00000E-01 |
9.633E-02 |
3.281E-02 |
| 6.00000E-01 |
8.906E-02 |
3.266E-02 |
| 8.00000E-01 |
7.822E-02 |
3.188E-02 |
| 1.00000E+00 |
7.032E-02 |
3.086E-02 |
| 1.25000E+00 |
6.288E-02 |
2.949E-02 |
| 1.50000E+00 |
5.722E-02 |
2.818E-02 |
| 2.00000E+00 |
4.914E-02 |
2.593E-02 |
| 3.00000E+00 |
3.945E-02 |
2.268E-02 |
| 4.00000E+00 |
3.382E-02 |
2.053E-02 |
| 5.00000E+00 |
3.012E-02 |
1.903E-02 |
| 6.00000E+00 |
2.752E-02 |
1.793E-02 |
| 8.00000E+00 |
2.411E-02 |
1.646E-02 |
| 1.00000E+01 |
2.202E-02 |
1.554E-02 |
| 1.50000E+01 |
1.924E-02 |
1.428E-02 |
| 2.00000E+01 |
1.796E-02 |
1.368E-02 |
|
|
Testis (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.824E+03 3.812E+03
1.03542E-03 3.489E+03 3.479E+03
1.07210E-03 3.182E+03 3.173E+03
11 K 1.07210E-03 3.194E+03 3.184E+03
1.50000E-03 1.291E+03 1.288E+03
2.00000E-03 5.783E+02 5.763E+02
2.14550E-03 4.737E+02 4.719E+02
15 K 2.14550E-03 4.759E+02 4.740E+02
2.30297E-03 3.889E+02 3.872E+02
2.47200E-03 3.174E+02 3.159E+02
16 K 2.47200E-03 3.211E+02 3.193E+02
2.64140E-03 2.654E+02 2.638E+02
2.82240E-03 2.193E+02 2.178E+02
17 K 2.82240E-03 2.222E+02 2.205E+02
3.00000E-03 1.864E+02 1.849E+02
3.60740E-03 1.088E+02 1.077E+02
19 K 3.60740E-03 1.109E+02 1.095E+02
4.00000E-03 8.188E+01 8.071E+01
5.00000E-03 4.229E+01 4.147E+01
6.00000E-03 2.456E+01 2.391E+01
8.00000E-03 1.039E+01 9.916E+00
1.00000E-02 5.357E+00 4.967E+00
1.50000E-02 1.689E+00 1.392E+00
2.00000E-02 8.182E-01 5.606E-01
3.00000E-02 3.778E-01 1.596E-01
4.00000E-02 2.687E-01 7.125E-02
5.00000E-02 2.266E-01 4.315E-02
6.00000E-02 2.053E-01 3.240E-02
8.00000E-02 1.828E-01 2.611E-02
1.00000E-01 1.699E-01 2.547E-02
1.50000E-01 1.497E-01 2.753E-02
2.00000E-01 1.363E-01 2.952E-02
3.00000E-01 1.180E-01 3.175E-02
4.00000E-01 1.055E-01 3.261E-02
5.00000E-01 9.633E-02 3.281E-02
6.00000E-01 8.906E-02 3.266E-02
8.00000E-01 7.822E-02 3.188E-02
1.00000E+00 7.032E-02 3.086E-02
1.25000E+00 6.288E-02 2.949E-02
1.50000E+00 5.722E-02 2.818E-02
2.00000E+00 4.914E-02 2.593E-02
3.00000E+00 3.945E-02 2.268E-02
4.00000E+00 3.382E-02 2.053E-02
5.00000E+00 3.012E-02 1.903E-02
6.00000E+00 2.752E-02 1.793E-02
8.00000E+00 2.411E-02 1.646E-02
1.00000E+01 2.202E-02 1.554E-02
1.50000E+01 1.924E-02 1.428E-02
2.00000E+01 1.796E-02 1.368E-02
|
