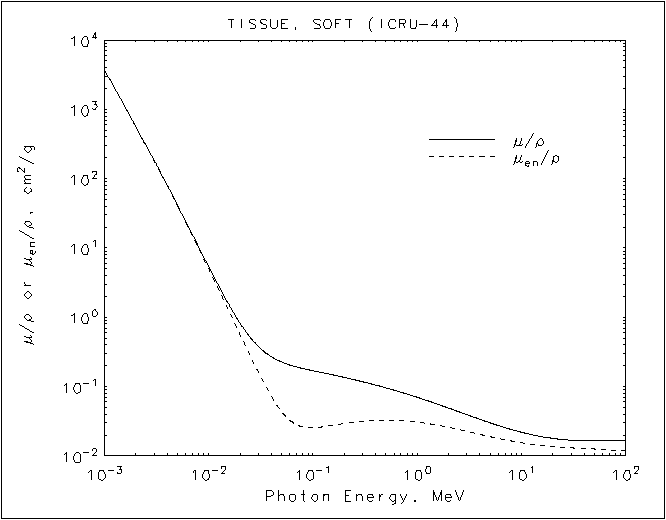

Tissue, Soft (ICRU-44)
HTML table format
|
|
| |
|
Energy |
|
 |
|
 |
| |
(MeV) |
(cm2/g) |
(cm2/g) |
|
| |
1.00000E-03 |
3.712E+03 |
3.701E+03 |
| 1.03542E-03 |
3.386E+03 |
3.376E+03 |
| 1.07210E-03 |
3.087E+03 |
3.079E+03 |
| 11 K |
1.07210E-03 |
3.099E+03 |
3.090E+03 |
| |
1.50000E-03 |
1.251E+03 |
1.247E+03 |
| 2.00000E-03 |
5.596E+02 |
5.577E+02 |
| 2.14550E-03 |
4.583E+02 |
4.566E+02 |
| 15 K |
2.14550E-03 |
4.650E+02 |
4.629E+02 |
| |
2.30297E-03 |
3.800E+02 |
3.782E+02 |
| 2.47200E-03 |
3.102E+02 |
3.086E+02 |
| 16 K |
2.47200E-03 |
3.158E+02 |
3.137E+02 |
| |
2.64140E-03 |
2.612E+02 |
2.594E+02 |
| 2.82240E-03 |
2.158E+02 |
2.142E+02 |
| 17 K |
2.82240E-03 |
2.188E+02 |
2.169E+02 |
| |
3.00000E-03 |
1.836E+02 |
1.819E+02 |
| 3.60740E-03 |
1.073E+02 |
1.061E+02 |
| 19 K |
3.60740E-03 |
1.105E+02 |
1.089E+02 |
| |
4.00000E-03 |
8.161E+01 |
8.030E+01 |
| 5.00000E-03 |
4.224E+01 |
4.135E+01 |
| 6.00000E-03 |
2.456E+01 |
2.389E+01 |
| 8.00000E-03 |
1.042E+01 |
9.935E+00 |
| 1.00000E-02 |
5.379E+00 |
4.987E+00 |
| 1.50000E-02 |
1.699E+00 |
1.402E+00 |
| 2.00000E-02 |
8.230E-01 |
5.663E-01 |
| 3.00000E-02 |
3.790E-01 |
1.616E-01 |
| 4.00000E-02 |
2.688E-01 |
7.216E-02 |
| 5.00000E-02 |
2.264E-01 |
4.360E-02 |
| 6.00000E-02 |
2.048E-01 |
3.264E-02 |
| 8.00000E-02 |
1.823E-01 |
2.617E-02 |
| 1.00000E-01 |
1.693E-01 |
2.545E-02 |
| 1.50000E-01 |
1.492E-01 |
2.745E-02 |
| 2.00000E-01 |
1.358E-01 |
2.942E-02 |
| 3.00000E-01 |
1.175E-01 |
3.164E-02 |
| 4.00000E-01 |
1.052E-01 |
3.249E-02 |
| 5.00000E-01 |
9.598E-02 |
3.269E-02 |
| 6.00000E-01 |
8.873E-02 |
3.254E-02 |
| 8.00000E-01 |
7.793E-02 |
3.176E-02 |
| 1.00000E+00 |
7.006E-02 |
3.074E-02 |
| 1.25000E+00 |
6.265E-02 |
2.938E-02 |
| 1.50000E+00 |
5.701E-02 |
2.807E-02 |
| 2.00000E+00 |
4.895E-02 |
2.583E-02 |
| 3.00000E+00 |
3.931E-02 |
2.259E-02 |
| 4.00000E+00 |
3.369E-02 |
2.045E-02 |
| 5.00000E+00 |
3.000E-02 |
1.895E-02 |
| 6.00000E+00 |
2.741E-02 |
1.786E-02 |
| 8.00000E+00 |
2.401E-02 |
1.639E-02 |
| 1.00000E+01 |
2.193E-02 |
1.547E-02 |
| 1.50000E+01 |
1.915E-02 |
1.422E-02 |
| 2.00000E+01 |
1.787E-02 |
1.362E-02 |
|
|
Tissue, Soft (ICRU-44)
ASCII format
________________________________________
Energy
(MeV) (cm2/g) (cm2/g)
________________________________________
1.00000E-03 3.712E+03 3.701E+03
1.03542E-03 3.386E+03 3.376E+03
1.07210E-03 3.087E+03 3.079E+03
11 K 1.07210E-03 3.099E+03 3.090E+03
1.50000E-03 1.251E+03 1.247E+03
2.00000E-03 5.596E+02 5.577E+02
2.14550E-03 4.583E+02 4.566E+02
15 K 2.14550E-03 4.650E+02 4.629E+02
2.30297E-03 3.800E+02 3.782E+02
2.47200E-03 3.102E+02 3.086E+02
16 K 2.47200E-03 3.158E+02 3.137E+02
2.64140E-03 2.612E+02 2.594E+02
2.82240E-03 2.158E+02 2.142E+02
17 K 2.82240E-03 2.188E+02 2.169E+02
3.00000E-03 1.836E+02 1.819E+02
3.60740E-03 1.073E+02 1.061E+02
19 K 3.60740E-03 1.105E+02 1.089E+02
4.00000E-03 8.161E+01 8.030E+01
5.00000E-03 4.224E+01 4.135E+01
6.00000E-03 2.456E+01 2.389E+01
8.00000E-03 1.042E+01 9.935E+00
1.00000E-02 5.379E+00 4.987E+00
1.50000E-02 1.699E+00 1.402E+00
2.00000E-02 8.230E-01 5.663E-01
3.00000E-02 3.790E-01 1.616E-01
4.00000E-02 2.688E-01 7.216E-02
5.00000E-02 2.264E-01 4.360E-02
6.00000E-02 2.048E-01 3.264E-02
8.00000E-02 1.823E-01 2.617E-02
1.00000E-01 1.693E-01 2.545E-02
1.50000E-01 1.492E-01 2.745E-02
2.00000E-01 1.358E-01 2.942E-02
3.00000E-01 1.175E-01 3.164E-02
4.00000E-01 1.052E-01 3.249E-02
5.00000E-01 9.598E-02 3.269E-02
6.00000E-01 8.873E-02 3.254E-02
8.00000E-01 7.793E-02 3.176E-02
1.00000E+00 7.006E-02 3.074E-02
1.25000E+00 6.265E-02 2.938E-02
1.50000E+00 5.701E-02 2.807E-02
2.00000E+00 4.895E-02 2.583E-02
3.00000E+00 3.931E-02 2.259E-02
4.00000E+00 3.369E-02 2.045E-02
5.00000E+00 3.000E-02 1.895E-02
6.00000E+00 2.741E-02 1.786E-02
8.00000E+00 2.401E-02 1.639E-02
1.00000E+01 2.193E-02 1.547E-02
1.50000E+01 1.915E-02 1.422E-02
2.00000E+01 1.787E-02 1.362E-02
|
