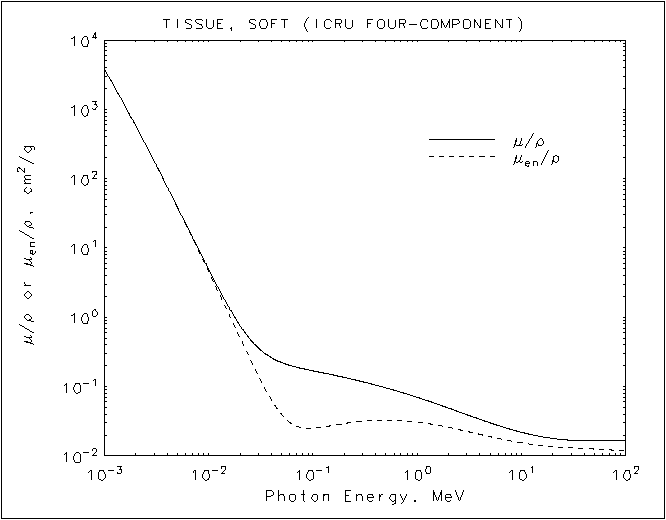

Tissue, Soft (ICRU Four-Component)
HTML table format
|
|
| Energy |
|
 |
|
 |
| (MeV) |
(cm2/g) |
(cm2/g) |
|
| 1.00000E-03 |
3.829E+03 |
3.818E+03 |
| 1.50000E-03 |
1.286E+03 |
1.283E+03 |
| 2.00000E-03 |
5.755E+02 |
5.736E+02 |
| 3.00000E-03 |
1.792E+02 |
1.781E+02 |
| 4.00000E-03 |
7.681E+01 |
7.598E+01 |
| 5.00000E-03 |
3.947E+01 |
3.880E+01 |
| 6.00000E-03 |
2.283E+01 |
2.226E+01 |
| 8.00000E-03 |
9.604E+00 |
9.163E+00 |
| 1.00000E-02 |
4.937E+00 |
4.564E+00 |
| 1.50000E-02 |
1.558E+00 |
1.266E+00 |
| 2.00000E-02 |
7.616E-01 |
5.070E-01 |
| 3.00000E-02 |
3.604E-01 |
1.438E-01 |
| 4.00000E-02 |
2.609E-01 |
6.474E-02 |
| 5.00000E-02 |
2.223E-01 |
3.987E-02 |
| 6.00000E-02 |
2.025E-01 |
3.051E-02 |
| 8.00000E-02 |
1.813E-01 |
2.530E-02 |
| 1.00000E-01 |
1.688E-01 |
2.501E-02 |
| 1.50000E-01 |
1.490E-01 |
2.732E-02 |
| 2.00000E-01 |
1.356E-01 |
2.936E-02 |
| 3.00000E-01 |
1.175E-01 |
3.161E-02 |
| 4.00000E-01 |
1.051E-01 |
3.247E-02 |
| 5.00000E-01 |
9.593E-02 |
3.267E-02 |
| 6.00000E-01 |
8.870E-02 |
3.252E-02 |
| 8.00000E-01 |
7.789E-02 |
3.175E-02 |
| 1.00000E+00 |
7.003E-02 |
3.073E-02 |
| 1.25000E+00 |
6.262E-02 |
2.937E-02 |
| 1.50000E+00 |
5.699E-02 |
2.806E-02 |
| 2.00000E+00 |
4.893E-02 |
2.582E-02 |
| 3.00000E+00 |
3.929E-02 |
2.258E-02 |
| 4.00000E+00 |
3.367E-02 |
2.044E-02 |
| 5.00000E+00 |
2.998E-02 |
1.894E-02 |
| 6.00000E+00 |
2.739E-02 |
1.785E-02 |
| 8.00000E+00 |
2.400E-02 |
1.638E-02 |
| 1.00000E+01 |
2.191E-02 |
1.546E-02 |
| 1.50000E+01 |
1.913E-02 |
1.420E-02 |
| 2.00000E+01 |
1.785E-02 |
1.360E-02 |
|
|
Tissue, Soft (ICRU Four-Component)
ASCII format
_________________________________
Energy
(MeV) (cm2/g) (cm2/g)
_________________________________
1.00000E-03 3.829E+03 3.818E+03
1.50000E-03 1.286E+03 1.283E+03
2.00000E-03 5.755E+02 5.736E+02
3.00000E-03 1.792E+02 1.781E+02
4.00000E-03 7.681E+01 7.598E+01
5.00000E-03 3.947E+01 3.880E+01
6.00000E-03 2.283E+01 2.226E+01
8.00000E-03 9.604E+00 9.163E+00
1.00000E-02 4.937E+00 4.564E+00
1.50000E-02 1.558E+00 1.266E+00
2.00000E-02 7.616E-01 5.070E-01
3.00000E-02 3.604E-01 1.438E-01
4.00000E-02 2.609E-01 6.474E-02
5.00000E-02 2.223E-01 3.987E-02
6.00000E-02 2.025E-01 3.051E-02
8.00000E-02 1.813E-01 2.530E-02
1.00000E-01 1.688E-01 2.501E-02
1.50000E-01 1.490E-01 2.732E-02
2.00000E-01 1.356E-01 2.936E-02
3.00000E-01 1.175E-01 3.161E-02
4.00000E-01 1.051E-01 3.247E-02
5.00000E-01 9.593E-02 3.267E-02
6.00000E-01 8.870E-02 3.252E-02
8.00000E-01 7.789E-02 3.175E-02
1.00000E+00 7.003E-02 3.073E-02
1.25000E+00 6.262E-02 2.937E-02
1.50000E+00 5.699E-02 2.806E-02
2.00000E+00 4.893E-02 2.582E-02
3.00000E+00 3.929E-02 2.258E-02
4.00000E+00 3.367E-02 2.044E-02
5.00000E+00 2.998E-02 1.894E-02
6.00000E+00 2.739E-02 1.785E-02
8.00000E+00 2.400E-02 1.638E-02
1.00000E+01 2.191E-02 1.546E-02
1.50000E+01 1.913E-02 1.420E-02
2.00000E+01 1.785E-02 1.360E-02
|
