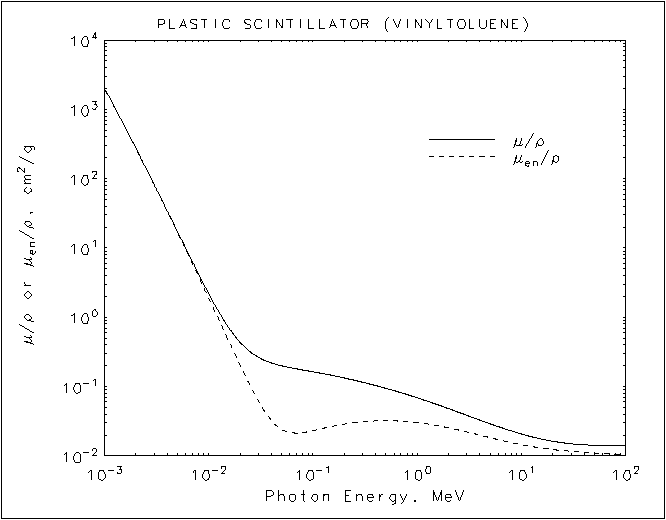

Plastic Scintillator (Vinyltoluene)
HTML table format
|
|
| Energy |
|
 |
|
 |
| (MeV) |
(cm2/g) |
(cm2/g) |
|
| 1.00000E-03 |
2.024E+03 |
2.022E+03 |
| 1.50000E-03 |
6.409E+02 |
6.397E+02 |
| 2.00000E-03 |
2.770E+02 |
2.760E+02 |
| 3.00000E-03 |
8.270E+01 |
8.203E+01 |
| 4.00000E-03 |
3.461E+01 |
3.407E+01 |
| 5.00000E-03 |
1.753E+01 |
1.707E+01 |
| 6.00000E-03 |
1.005E+01 |
9.650E+00 |
| 8.00000E-03 |
4.220E+00 |
3.883E+00 |
| 1.00000E-02 |
2.204E+00 |
1.903E+00 |
| 1.50000E-02 |
7.705E-01 |
5.158E-01 |
| 2.00000E-02 |
4.358E-01 |
2.059E-01 |
| 3.00000E-02 |
2.647E-01 |
6.210E-02 |
| 4.00000E-02 |
2.194E-01 |
3.256E-02 |
| 5.00000E-02 |
1.997E-01 |
2.424E-02 |
| 6.00000E-02 |
1.881E-01 |
2.180E-02 |
| 8.00000E-02 |
1.736E-01 |
2.172E-02 |
| 1.00000E-01 |
1.635E-01 |
2.310E-02 |
| 1.50000E-01 |
1.458E-01 |
2.650E-02 |
| 2.00000E-01 |
1.331E-01 |
2.876E-02 |
| 3.00000E-01 |
1.155E-01 |
3.110E-02 |
| 4.00000E-01 |
1.034E-01 |
3.197E-02 |
| 5.00000E-01 |
9.443E-02 |
3.218E-02 |
| 6.00000E-01 |
8.732E-02 |
3.204E-02 |
| 8.00000E-01 |
7.668E-02 |
3.128E-02 |
| 1.00000E+00 |
6.894E-02 |
3.027E-02 |
| 1.25000E+00 |
6.166E-02 |
2.894E-02 |
| 1.50000E+00 |
5.611E-02 |
2.766E-02 |
| 2.00000E+00 |
4.810E-02 |
2.542E-02 |
| 3.00000E+00 |
3.848E-02 |
2.214E-02 |
| 4.00000E+00 |
3.282E-02 |
1.992E-02 |
| 5.00000E+00 |
2.907E-02 |
1.835E-02 |
| 6.00000E+00 |
2.641E-02 |
1.718E-02 |
| 8.00000E+00 |
2.290E-02 |
1.558E-02 |
| 1.00000E+01 |
2.069E-02 |
1.455E-02 |
| 1.50000E+01 |
1.770E-02 |
1.309E-02 |
| 2.00000E+01 |
1.624E-02 |
1.236E-02 |
|
|
Plastic Scintillator (Vinyltoluene)
ASCII format
_________________________________
Energy
(MeV) (cm2/g) (cm2/g)
_________________________________
1.00000E-03 2.024E+03 2.022E+03
1.50000E-03 6.409E+02 6.397E+02
2.00000E-03 2.770E+02 2.760E+02
3.00000E-03 8.270E+01 8.203E+01
4.00000E-03 3.461E+01 3.407E+01
5.00000E-03 1.753E+01 1.707E+01
6.00000E-03 1.005E+01 9.650E+00
8.00000E-03 4.220E+00 3.883E+00
1.00000E-02 2.204E+00 1.903E+00
1.50000E-02 7.705E-01 5.158E-01
2.00000E-02 4.358E-01 2.059E-01
3.00000E-02 2.647E-01 6.210E-02
4.00000E-02 2.194E-01 3.256E-02
5.00000E-02 1.997E-01 2.424E-02
6.00000E-02 1.881E-01 2.180E-02
8.00000E-02 1.736E-01 2.172E-02
1.00000E-01 1.635E-01 2.310E-02
1.50000E-01 1.458E-01 2.650E-02
2.00000E-01 1.331E-01 2.876E-02
3.00000E-01 1.155E-01 3.110E-02
4.00000E-01 1.034E-01 3.197E-02
5.00000E-01 9.443E-02 3.218E-02
6.00000E-01 8.732E-02 3.204E-02
8.00000E-01 7.668E-02 3.128E-02
1.00000E+00 6.894E-02 3.027E-02
1.25000E+00 6.166E-02 2.894E-02
1.50000E+00 5.611E-02 2.766E-02
2.00000E+00 4.810E-02 2.542E-02
3.00000E+00 3.848E-02 2.214E-02
4.00000E+00 3.282E-02 1.992E-02
5.00000E+00 2.907E-02 1.835E-02
6.00000E+00 2.641E-02 1.718E-02
8.00000E+00 2.290E-02 1.558E-02
1.00000E+01 2.069E-02 1.455E-02
1.50000E+01 1.770E-02 1.309E-02
2.00000E+01 1.624E-02 1.236E-02
|
