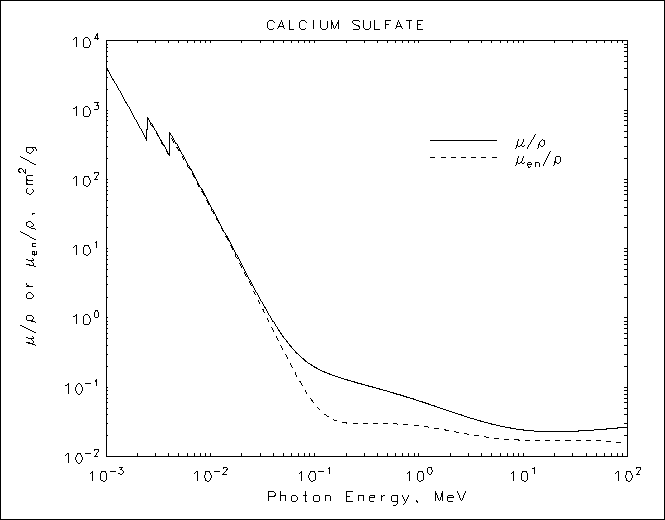

Calcium Sulfate graph


Calcium Sulfate
HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g) (cm2/g)

  1.00000E-03 4.163E+03 4.153E+03
1.50000E-03 1.429E+03 1.425E+03
2.00000E-03 6.529E+02 6.503E+02
2.47200E-03 3.627E+02 3.606E+02
16 K 2.47200E-03 7.993E+02 7.659E+02
  3.00000E-03 4.961E+02 4.774E+02
4.00000E-03 2.289E+02 2.215E+02
4.03810E-03 2.231E+02 2.159E+02
20 K 4.03810E-03 4.895E+02 4.431E+02
  5.00000E-03 2.820E+02 2.595E+02
6.00000E-03 1.727E+02 1.606E+02
8.00000E-03 7.858E+01 7.394E+01
1.00000E-02 4.210E+01 3.977E+01
1.50000E-02 1.329E+01 1.247E+01
2.00000E-02 5.831E+00 5.352E+00
3.00000E-02 1.876E+00 1.587E+00
4.00000E-02 8.928E-01 6.645E-01
5.00000E-02 5.381E-01 3.403E-01
6.00000E-02 3.788E-01 2.001E-01
8.00000E-02 2.474E-01 9.290E-02
1.00000E-01 1.962E-01 5.732E-02
1.50000E-01 1.487E-01 3.443E-02
2.00000E-01 1.293E-01 3.057E-02
3.00000E-01 1.088E-01 2.981E-02
4.00000E-01 9.653E-02 2.994E-02
5.00000E-01 8.777E-02 2.989E-02
6.00000E-01 8.100E-02 2.964E-02
8.00000E-01 7.100E-02 2.884E-02
1.00000E+00 6.377E-02 2.787E-02
1.25000E+00 5.701E-02 2.660E-02
1.50000E+00 5.193E-02 2.542E-02
2.00000E+00 4.488E-02 2.350E-02
3.00000E+00 3.679E-02 2.102E-02
4.00000E+00 3.232E-02 1.958E-02
5.00000E+00 2.954E-02 1.869E-02
6.00000E+00 2.770E-02 1.814E-02
8.00000E+00 2.547E-02 1.753E-02
1.00000E+01 2.428E-02 1.727E-02
1.50000E+01 2.305E-02 1.711E-02
2.00000E+01 2.282E-02 1.716E-02

Calcium Sulfate
ASCII format
________________________________________

         Energy         μ/ρ       μen/ρ
          (MeV)       (cm2/g)    (cm2/g)
________________________________________

       1.00000E-03  4.163E+03  4.153E+03
       1.50000E-03  1.429E+03  1.425E+03
       2.00000E-03  6.529E+02  6.503E+02
       2.47200E-03  3.627E+02  3.606E+02
 16 K  2.47200E-03  7.993E+02  7.659E+02
       3.00000E-03  4.961E+02  4.774E+02
       4.00000E-03  2.289E+02  2.215E+02
       4.03810E-03  2.231E+02  2.159E+02
 20 K  4.03810E-03  4.895E+02  4.431E+02
       5.00000E-03  2.820E+02  2.595E+02
       6.00000E-03  1.727E+02  1.606E+02
       8.00000E-03  7.858E+01  7.394E+01
       1.00000E-02  4.210E+01  3.977E+01
       1.50000E-02  1.329E+01  1.247E+01
       2.00000E-02  5.831E+00  5.352E+00
       3.00000E-02  1.876E+00  1.587E+00
       4.00000E-02  8.928E-01  6.645E-01
       5.00000E-02  5.381E-01  3.403E-01
       6.00000E-02  3.788E-01  2.001E-01
       8.00000E-02  2.474E-01  9.290E-02
       1.00000E-01  1.962E-01  5.732E-02
       1.50000E-01  1.487E-01  3.443E-02
       2.00000E-01  1.293E-01  3.057E-02
       3.00000E-01  1.088E-01  2.981E-02
       4.00000E-01  9.653E-02  2.994E-02
       5.00000E-01  8.777E-02  2.989E-02
       6.00000E-01  8.100E-02  2.964E-02
       8.00000E-01  7.100E-02  2.884E-02
       1.00000E+00  6.377E-02  2.787E-02
       1.25000E+00  5.701E-02  2.660E-02
       1.50000E+00  5.193E-02  2.542E-02
       2.00000E+00  4.488E-02  2.350E-02
       3.00000E+00  3.679E-02  2.102E-02
       4.00000E+00  3.232E-02  1.958E-02
       5.00000E+00  2.954E-02  1.869E-02
       6.00000E+00  2.770E-02  1.814E-02
       8.00000E+00  2.547E-02  1.753E-02
       1.00000E+01  2.428E-02  1.727E-02
       1.50000E+01  2.305E-02  1.711E-02
       2.00000E+01  2.282E-02  1.716E-02
