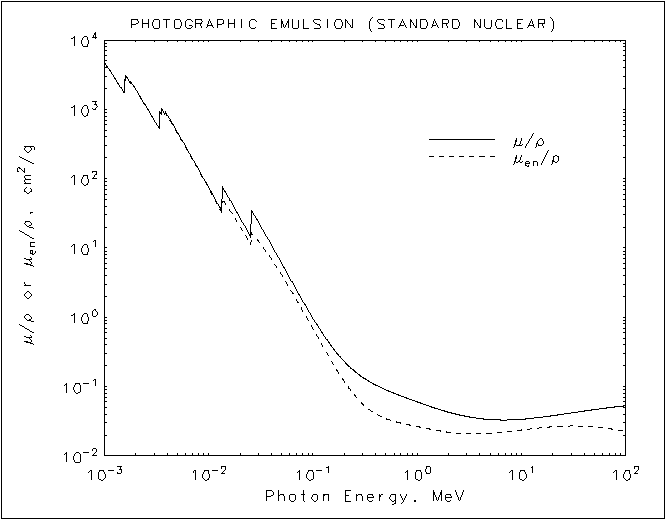

Photographic Emulsion-Standard Nuclear graph


Photographic Emulsion (Standard Nuclear)
HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g) (cm2/g)

  1.00000E-03 4.813E+03 4.805E+03
1.03542E-03 4.444E+03 4.436E+03
1.07210E-03 4.101E+03 4.093E+03
53 M1 1.07210E-03 4.102E+03 4.094E+03
  1.50000E-03 1.860E+03 1.854E+03
1.54990E-03 1.720E+03 1.714E+03
35 L3 1.54990E-03 2.894E+03 2.867E+03
  1.57278E-03 2.688E+03 2.664E+03
1.59600E-03 2.554E+03 2.531E+03
35 L2 1.59600E-03 3.081E+03 3.048E+03
  1.68644E-03 2.743E+03 2.714E+03
1.78200E-03 2.381E+03 2.356E+03
35 L1 1.78200E-03 2.564E+03 2.536E+03
  2.00000E-03 1.937E+03 1.917E+03
2.47200E-03 1.143E+03 1.131E+03
16 K 2.47200E-03 1.147E+03 1.134E+03
  3.00000E-03 7.017E+02 6.933E+02
3.35110E-03 5.279E+02 5.210E+02
47 L3 3.35110E-03 9.478E+02 9.196E+02
  3.43632E-03 8.905E+02 8.633E+02
3.52370E-03 8.348E+02 8.105E+02
47 L2 3.52370E-03 1.034E+03 9.987E+02
  3.66203E-03 9.393E+02 9.076E+02
3.80580E-03 8.534E+02 8.252E+02
47 L1 3.80580E-03 9.416E+02 9.092E+02
  4.00000E-03 8.342E+02 8.062E+02
4.55710E-03 5.971E+02 5.783E+02
53 L3 4.55710E-03 5.987E+02 5.797E+02
  4.70229E-03 5.516E+02 5.343E+02
4.85210E-03 5.083E+02 4.925E+02
53 L2 4.85210E-03 5.090E+02 4.931E+02
  5.00000E-03 4.708E+02 4.562E+02
5.18810E-03 4.277E+02 4.146E+02
53 L1 5.18810E-03 4.280E+02 4.149E+02
  6.00000E-03 2.926E+02 2.838E+02
8.00000E-03 1.364E+02 1.320E+02
1.00000E-02 7.494E+01 7.205E+01
1.34737E-02 3.346E+01 3.168E+01
35 K 1.34737E-02 7.721E+01 5.135E+01
  1.50000E-02 5.843E+01 4.040E+01
2.00000E-02 2.729E+01 2.042E+01
2.55140E-02 1.417E+01 1.105E+01
47 K 2.55140E-02 3.591E+01 1.663E+01
  3.00000E-02 2.360E+01 1.256E+01
3.31694E-02 1.809E+01 1.030E+01
53 K 3.31694E-02 1.819E+01 1.032E+01
  4.00000E-02 1.102E+01 6.910E+00
5.00000E-02 6.042E+00 4.103E+00
6.00000E-02 3.693E+00 2.610E+00
8.00000E-02 1.717E+00 1.238E+00
1.00000E-01 9.710E-01 6.839E-01
1.50000E-01 3.860E-01 2.355E-01
2.00000E-01 2.294E-01 1.183E-01
3.00000E-01 1.359E-01 5.609E-02
4.00000E-01 1.053E-01 4.043E-02
5.00000E-01 8.992E-02 3.449E-02
6.00000E-01 8.027E-02 3.153E-02
8.00000E-01 6.806E-02 2.842E-02
1.00000E+00 6.019E-02 2.655E-02
1.25000E+00 5.335E-02 2.481E-02
1.50000E+00 4.863E-02 2.352E-02
2.00000E+00 4.270E-02 2.192E-02
3.00000E+00 3.700E-02 2.077E-02
4.00000E+00 3.455E-02 2.072E-02
5.00000E+00 3.344E-02 2.106E-02
6.00000E+00 3.298E-02 2.153E-02
8.00000E+00 3.306E-02 2.259E-02
1.00000E+01 3.372E-02 2.358E-02
1.50000E+01 3.592E-02 2.536E-02
2.00000E+01 3.804E-02 2.634E-02

Photographic Emulsion (Standard Nuclear)
ASCII format
________________________________________

         Energy         μ/ρ       μen/ρ
          (MeV)       (cm2/g)    (cm2/g)
________________________________________

       1.00000E-03  4.813E+03  4.805E+03
       1.03542E-03  4.444E+03  4.436E+03
       1.07210E-03  4.101E+03  4.093E+03
 53 M1 1.07210E-03  4.102E+03  4.094E+03
       1.50000E-03  1.860E+03  1.854E+03
       1.54990E-03  1.720E+03  1.714E+03
 35 L3 1.54990E-03  2.894E+03  2.867E+03
       1.57278E-03  2.688E+03  2.664E+03
       1.59600E-03  2.554E+03  2.531E+03
 35 L2 1.59600E-03  3.081E+03  3.048E+03
       1.68644E-03  2.743E+03  2.714E+03
       1.78200E-03  2.381E+03  2.356E+03
 35 L1 1.78200E-03  2.564E+03  2.536E+03
       2.00000E-03  1.937E+03  1.917E+03
       2.47200E-03  1.143E+03  1.131E+03
 16 K  2.47200E-03  1.147E+03  1.134E+03
       3.00000E-03  7.017E+02  6.933E+02
       3.35110E-03  5.279E+02  5.210E+02
 47 L3 3.35110E-03  9.478E+02  9.196E+02
       3.43632E-03  8.905E+02  8.633E+02
       3.52370E-03  8.348E+02  8.105E+02
 47 L2 3.52370E-03  1.034E+03  9.987E+02
       3.66203E-03  9.393E+02  9.076E+02
       3.80580E-03  8.534E+02  8.252E+02
 47 L1 3.80580E-03  9.416E+02  9.092E+02
       4.00000E-03  8.342E+02  8.062E+02
       4.55710E-03  5.971E+02  5.783E+02
 53 L3 4.55710E-03  5.987E+02  5.797E+02
       4.70229E-03  5.516E+02  5.343E+02
       4.85210E-03  5.083E+02  4.925E+02
 53 L2 4.85210E-03  5.090E+02  4.931E+02
       5.00000E-03  4.708E+02  4.562E+02
       5.18810E-03  4.277E+02  4.146E+02
 53 L1 5.18810E-03  4.280E+02  4.149E+02
       6.00000E-03  2.926E+02  2.838E+02
       8.00000E-03  1.364E+02  1.320E+02
       1.00000E-02  7.494E+01  7.205E+01
       1.34737E-02  3.346E+01  3.168E+01
 35 K  1.34737E-02  7.721E+01  5.135E+01
       1.50000E-02  5.843E+01  4.040E+01
       2.00000E-02  2.729E+01  2.042E+01
       2.55140E-02  1.417E+01  1.105E+01
 47 K  2.55140E-02  3.591E+01  1.663E+01
       3.00000E-02  2.360E+01  1.256E+01
       3.31694E-02  1.809E+01  1.030E+01
 53 K  3.31694E-02  1.819E+01  1.032E+01
       4.00000E-02  1.102E+01  6.910E+00
       5.00000E-02  6.042E+00  4.103E+00
       6.00000E-02  3.693E+00  2.610E+00
       8.00000E-02  1.717E+00  1.238E+00
       1.00000E-01  9.710E-01  6.839E-01
       1.50000E-01  3.860E-01  2.355E-01
       2.00000E-01  2.294E-01  1.183E-01
       3.00000E-01  1.359E-01  5.609E-02
       4.00000E-01  1.053E-01  4.043E-02
       5.00000E-01  8.992E-02  3.449E-02
       6.00000E-01  8.027E-02  3.153E-02
       8.00000E-01  6.806E-02  2.842E-02
       1.00000E+00  6.019E-02  2.655E-02
       1.25000E+00  5.335E-02  2.481E-02
       1.50000E+00  4.863E-02  2.352E-02
       2.00000E+00  4.270E-02  2.192E-02
       3.00000E+00  3.700E-02  2.077E-02
       4.00000E+00  3.455E-02  2.072E-02
       5.00000E+00  3.344E-02  2.106E-02
       6.00000E+00  3.298E-02  2.153E-02
       8.00000E+00  3.306E-02  2.259E-02
       1.00000E+01  3.372E-02  2.358E-02
       1.50000E+01  3.592E-02  2.536E-02
       2.00000E+01  3.804E-02  2.634E-02
